GV-APOE0410-E

Categories: ,

Description

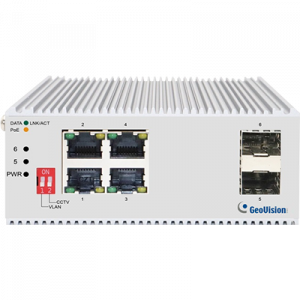

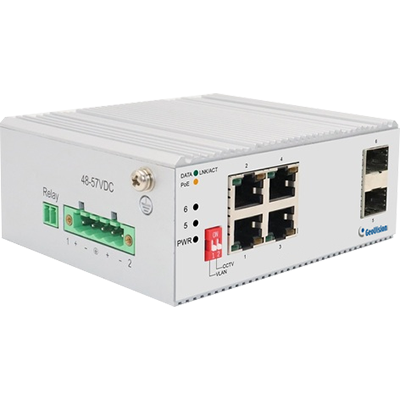

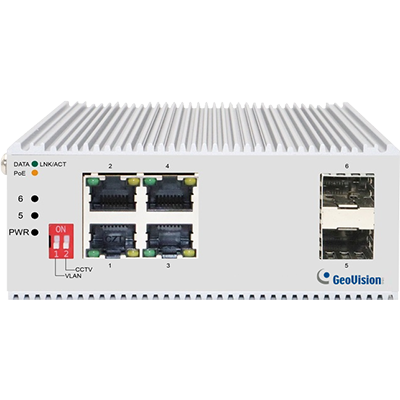

4-port Gigabit 802.3at and 2-port Gigabit SFP Industrial PoE Switch

GV-APOE0410-E is an industrial-grade, unmanaged PoE switch with 4 PoE+ 10/100/1000 BaseT(X) ports and 2 Gigabit SFP ports. The switch supports IEEE 802.3at Power over Ethernet standard with up to 30 W per port and a maximum power consumption of 125 W. It not only eliminates the need for power cables to connect your powered devices (PD), such as IP cameras, but it also allows power supply over cables up to 250 m (820 ft) in length, at 10 Mbps.

The switch is ideal for small or medium network environments to strengthen network connection and efficiency. It includes the smart PD Alive Check feature and the option to isolate each PoE port for a faster forwarding rate of time.

Key Features

  • 4-port PoE+ 10/100/1000 BaseT(X), 2-port Gigabit SFP
  • IEEE 802.3at Compliant (4 Ports at Full 30 W)
  • Max. 125 W power consumption
  • Extreme temperature tolerance (‐40°C ~ 75°C / ‐40°F ~ 167°F)
  • Auto-MDI/MDI-X
  • DIN-Rail Installation
  • Redundant DC power
  • VLAN mode for network partition and enhanced performance
  • PD Alive Check
  • PoE connection for network cables up to 250 m (820 ft) at 10 Mbps transfer rate
  • 4 kV Surge Protection
  • Up to 4 GV-IP Cameras support

Note:

  • Specifications are subject to change without prior notice.

Overview

Note:

  • Specifications are subject to change without prior notice.

Accessories

Model No Name Details
GV-LC The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet, and provides the media transmission distance up to 220 / 550 m (772 / 1804 ft).
GV-LC10 The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet, and provides the media transmission distance up to 10 km (32808 ft).

Packing List

  • GV-APOE0410-E
  • Terminal Block x 2
  • Download Guide

Note:

  • Specifications are subject to change without prior notice.

Download

https://www.geovision.com.tw/download/product/GV-APOE0410-E
