GV-AS1010

Categories: ,

Description

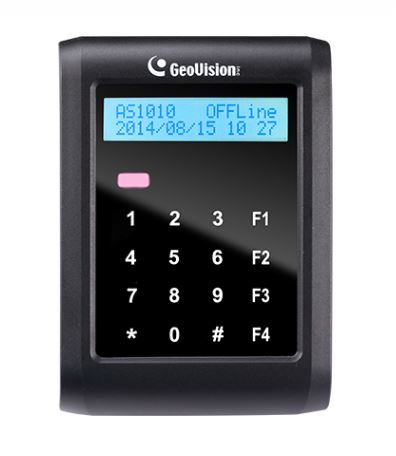

IP Controller with Built-in Reader and Time & Attendance Function Keys

GV‐AS1010 is a single door controller with one built‐in reader and LCD display for access control and time & attendance. For entry and exit control, users can add two extra readers to GV‐AS1010. When combined the access control system GV‐ASManager, GV‐AS1010 can store up to 40,000 cards. GV‐AS1010 can be programmed through the keypad or GV‐ASManager. GV‐AS1010, applicable to doors, parking gates and elevator call buttons, is the ideal solution for your access control and workforce management.

Key Features

  • 1 door (one-way or two-way control)
  • 1,000 / 40,000 cards (standalone / networked mode)
  • Easy programming from keypad
  • Function keys on keypad to register attendance data of work time, overtime, break time or job code
  • Built-in 3 digital inputs and 2 relay outputs
  • 1 RS-485 interface supporting up to 2 readers
  • 1 network interface for GV-ASManager and TCP/IP reader connections
  • Built-in 13.56 MHz Reader
  • GeoVision access cards with GID (GeoVision Identifier) to enhance security
  • Built-in tampering alarm sensor
  • Anti-Passback (APB) support

Note:

  • GV‐AS1010 does not support 3rd party access control software and 3rd party readers.
  • If you are using third‐party cards or key fobs, the reader must be under UID mode.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
Push Button Switch The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available.
GV-IB25 / 65 / 85 Infrared Button The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand.
Electric Lock Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
Access Card / Fob / Sticker / Tag GeoVision offers a wide range of access cards, fobs, stickers, and tags to meet your needs. Please refer to the product datasheet for information on compatible frequencies and accessories.
GV-WTR GV-WTR is a converter designed for converting Wiegand interface to RS-485 interface, and vice versa. It enables 3rd party readers to be connected to RS-485 GV-Controllers, as well as allowing GV-AI FR (software) and GV-CR1320 (RS-485 camera reader) to be connected to 3rd-party Wiegand controllers.

Packing List

  • GV-AS1010
  • Power Adaptor 12V DC / 1.25A
  • Screw x 3
  • Screw Anchor x 2
  • Enroll Card
  • Delete Card
  • GV-AS ID F Card x 20
  • Torx Wrench
  • Software CD
  • Warranty Card

Note:

  • GV‐AS1010 does not support 3rd party access control software and 3rd party readers.
  • If you are using third‐party cards or key fobs, the reader must be under UID mode.
  • Specifications are subject to change without notice.

Video

Using Function Keys of GV-AS1010 to Register Attendance Data

Installing GV-AS1010

Connecting GV-AS Controller to GV-Reader via TCP/IP

Note:

  • GV‐AS1010 does not support 3rd party access control software and 3rd party readers.
  • If you are using third‐party cards or key fobs, the reader must be under UID mode.
  • Specifications are subject to change without notice.
