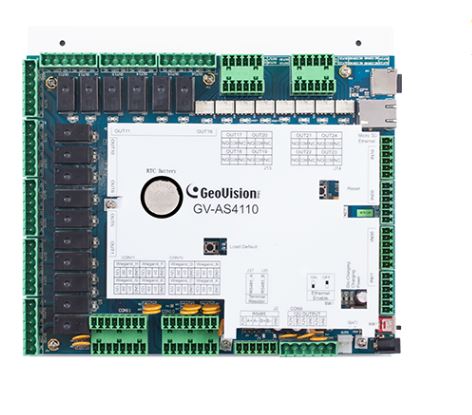

GV-AS4110 IP Control Panel

Key Features

  • One-way and two-way control of 4 doors
  • 8 Wiegand card readers of 26 to 64 bits
  • 8 GV-Readers and GV-GF Fingerprint Readers through RS-485 and network
  • Built-in 16 inputs and 24 relay outputs
  • Suitable for controlling doors, parking gates, and elevator call buttons
  • Tampering alarm

Note:

  • RS485 and TCP/IP interfaces only support GeoVision readers, while Wiegand interface supports both GeoVision and 3rd party readers (Wiegand 26~64 Bits).
  • GV-AS Controller does not support 3rd party access control software
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
Cabinet (GV-AS Iron Box) With the cabinet (Dimension 383.5 x 443.5 x 112.2 mm / 15.1 x 17.5 x 4.4 in), GV-AS Controllers can be mounted directly to a wall or recessed into the wall.
Push Button Switch The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available.
GV-IB25 / 65 / 85 Infrared Button The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand.
Electric Lock Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
Access Card / Fob / Sticker / Tag GeoVision offers a wide range of access cards, fobs, stickers, and tags to meet your needs. Please refer to the product datasheet for information on compatible frequencies and accessories.
GV-WTR GV-WTR is a converter designed for converting Wiegand interface to RS-485 interface, and vice versa. It enables 3rd party readers to be connected to RS-485 GV-Controllers, as well as allowing GV-AI FR (software) and GV-CR1320 (RS-485 camera reader) to be connected to 3rd-party Wiegand controllers.
GV-FWC GV-FWC integrates GeoVision face-recognition-based cameras, software and readers into access control systems by sending access card data, paired to Face IDs, to controllers either through TCP/IP or Wiegand connection.

Packing List

  • GV-AS4110
  • Power Adaptor 12V DC / 3.5A
  • Power Cord
  • Battery Cable
  • Screw x 8
  • Hex Nut x 8
  • Hex Pillar x 8
  • Micro SD Card 2 GB
  • Software CD
  • Warranty Card

Note:

  • RS485 and TCP/IP interfaces only support GeoVision readers, while Wiegand interface supports both GeoVision and 3rd party readers (Wiegand 26~64 Bits).
  • GV-AS Controller does not support 3rd party access control software
  • Specifications are subject to change without notice.

Video

Connecting GV-AS Controller to GV-Reader via TCP/IP

GV-ML1200 Electromagnetic Lock – The Characteristics of Two Different Sensors

GV-ML1200 Electromagnetic Lock – installation – Door Closure Detection Sensor

GV-ML1200 Electromagnetic Lock – installation – Magnet Clasp Detection Sensor


Note:

  • RS485 and TCP/IP interfaces only support GeoVision readers, while Wiegand interface supports both GeoVision and 3rd party readers (Wiegand 26~64 Bits).
  • GV-AS Controller does not support 3rd party access control software
  • Specifications are subject to change without notice.
