Description

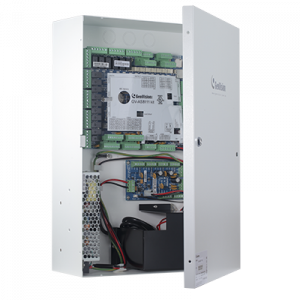

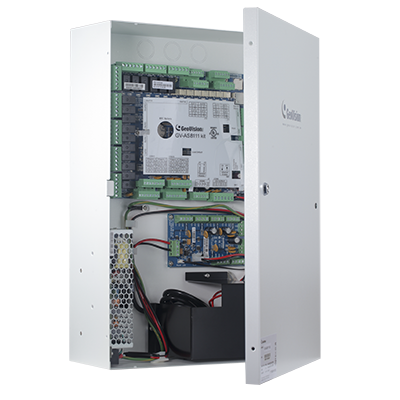

The GV‐AS8111 Kit is a cabinet that contains a GV-AS8111, a power adapter board, a power supply, and a backup battery case. The power supply powers the GV-AS8111 Kit as well as up to 8 output devices (12V, 0.5A per device).

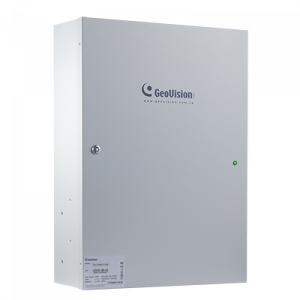

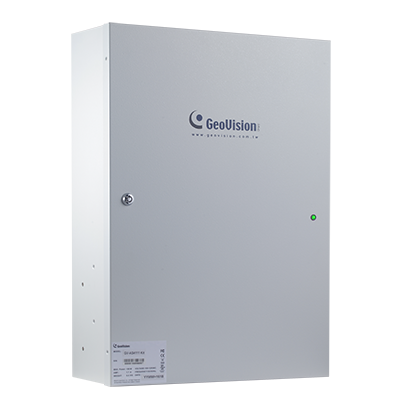

GV-AS8111 Kit
Key Features
- One-way control: 8 doors
- Two-way control: 4 doors by Wiegand only; 8 doors by RS-485 / network; 8 doors with max 4 doors by Wiegand and other doors by RS-485 / network
- 8 Wiegand card readers of 26 to 64 bits
- 16 GV-Readers and GV-GF Fingerprint Readers through RS-485 or network
- Built-in 16 inputs and 24 relay outputs
- Suitable for controlling doors, parking gates, and elevator call buttons
- Tampering alarm
- UL 294 compliance
Note:
- UL 294 Attack Class Level 1 depends on other connected equipment.
- Specifications are subject to change without notice.
Accessories
| Model No | Name | Details | |
|---|---|---|---|
| Push Button Switch | The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available. | ||
| GV-IB25 / 65 / 85 Infrared Button | The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand. | ||
| Electric Lock | Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike. | ||
| Access Card / Fob / Sticker / Tag | GeoVision offers a wide range of access cards, fobs, stickers, and tags to meet your needs. Please refer to the product datasheet for information on compatible frequencies and accessories. | ||
| GV-WTR |  |
GV-WTR is a converter designed for converting Wiegand interface to RS-485 interface, and vice versa. It enables 3rd party readers to be connected to RS-485 GV-Controllers, as well as allowing GV-AI FR (software) and GV-CR1320 (RS-485 camera reader) to be connected to 3rd-party Wiegand controllers. | |
| GV-FWC | GV-FWC integrates GeoVision face-recognition-based cameras, software and readers into access control systems by sending access card data, paired to Face IDs, to controllers either through TCP/IP or Wiegand connection. | ||
Packing List
- GV-AS8111 Kit (US standard or EU standard)
- Iron box key
- Iron box screw x 6
- Self-adhesive cable tie mounts x 6
- Power cord for battery
- Micro SD Card 2 GB
- Software CD
- Warranty Card
Note:
- UL 294 Attack Class Level 1 depends on other connected equipment.
- Specifications are subject to change without notice.
Video
Connecting GV-AS Controller to GV-Reader via TCP/IP
GV-ML1200 Electromagnetic Lock – The Characteristics of Two Different Sensors
GV-ML1200 Electromagnetic Lock – installation – Door Closure Detection Sensor
GV-ML1200 Electromagnetic Lock – installation – Magnet Clasp Detection Sensor
Note:
- UL 294 Attack Class Level 1 depends on other connected equipment.
- Specifications are subject to change without notice.
