GV-AVD8710

Categories: ,

Description

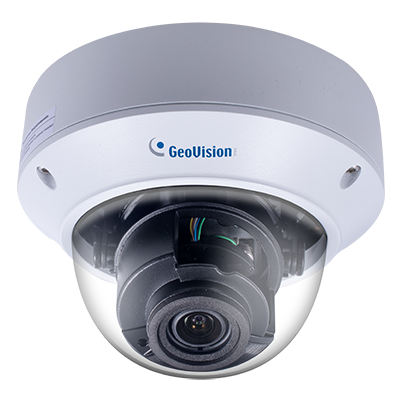

8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-AVD8710 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

Models

Model GV-AVD8710
Iris Fixed
Focal Length (mm) 2.8~12mm
Horizontal FOV 114.8°~47.3°
Maximum Aperture F/1.5
Image Format 1/2″

Key Features

  • 1/2″ progressive scan super low lux CMOS sensor
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • 3-axis mechanism (pan / tilt / rotate)
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Two-way audio capable
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • Tampering alarm
  • ONVIF (Profile G, S, T) conformant
  • CE, FCC, RoHS compliant

Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.

Overview




Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount212-2
GV-Mount211-2 Wall Mount and Junction Box Dimensions: Φ253 x125 x 125 mm (Φ10 x 4.9 x 4.9″)
Weight: 0.92 kg (2.0 lb)
GV-Mount212-2 Wall Box Mount Dimensions: Φ145x 40 mm (Φ5.7″ x 1.6″)
Weight: 0.24 kg (0.5 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″)
*must be used with GV-Mount211-2
GV-Mount606 In-Ceiling Mount Dimensions: Φ235 x 63 mm (Φ9.3″ x 2.5″)
In-ceiling hole: Φ195 mm (Φ7.67″)
Weight: 0.49 kg (1.1 lb)
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-Mount921 Power Box Mount Bracket Dimensions: Ø 145 x 13 mm (Ø 5.7″x 0.5″)
Weight: 0.13 kg (0.29 lb)
* for standard US single and double gang boxes only
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • IR Vandal Vandal Proof Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Torx Wrench
  • Download Guide
  • Warranty Card

Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.
