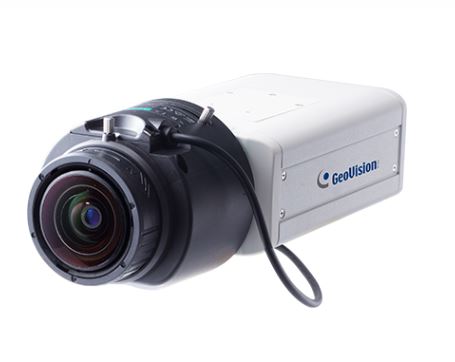

GV-BX12201

Categories: ,

Description

12MP H.264 Low Lux WDR D/N Box IP Camera

The GV-BX12201 is a dual-stream, day/night indoor IP camera containing a varifocal lens. The camera is equipped with a progressive scan CMOS image sensor. The camera features a 12 MP resolution, and the increased pixel density allows the camera to capture scenes of greater details.

Models

Model GV-BX12201
Iris DC Drive
Focal Length (mm) 4.1~9mm
Horizontal FOV 109°~50°
Maximum Aperture F/1.6
Image Format 1/1.8″

Key Features

  • 1/1.7″ progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 15 fps at 4000 × 3000, 30 fps at 3840 × 2160
  • Built-in / external microphone
  • Two-way audio capable
  • One sensor input and one alarm output
  • TV-out support
  • Mini USB slot for WiFi Adapter
  • Wide Dynamic Range (WDR)
  • Low lux enhancement
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • DC 12V / AC 24V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Day and Night function (with removable IR-cut filter)
  • Megapixel varifocal lens
  • Support for iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • Recording assigned by GV-Edge Recording Manager (Windows version)

Note:

  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.0.0.
  • The power adapter can be excluded upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.

Overview





Note:

  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.0.0.
  • The power adapter can be excluded upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.



Accessories



Model No Name Details
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6″) Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6″
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5″) Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5″
GV-Housing103 (not supported by GV-BX4700-8F) Housing Box (with IR) Dimensions: 404 x 128 x 257 mm (15.91 x 5.04 x 10.12″)
Weight: 7 kg (15.43 lb)
Start-up Temperature: ‐20°C ~ 50°C (‐4°F ~ 122°F)
Operation Temperature: ‐30°C ~ 50°C (‐22°F ~ 122°F)
IR: 6 IR LEDs with up to 60m (196.85ft) IR effective distance
Power: 12V DC, 1A inputGV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
Supporting Rack Dimensions: Ø 58 x 120 mm (2.28″ x 4.72″)
Weight: 0.1 kg (103 g)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.



Packing List



  • Box Camera
  • Terminal Block
  • Fixed Focal or Varifocal Megapixel Lens
  • Six Lens Rings
  • Video Out Wire
  • Camera Holder
  • Holder Screw x 2
  • Power Adapter
  • Download Guide
  • Warranty Card

Note:

  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.0.0.
  • The power adapter can be excluded upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.
