GV-BX4802
GV-BX4802_01

GV-BX4802

Categories: ,

Description

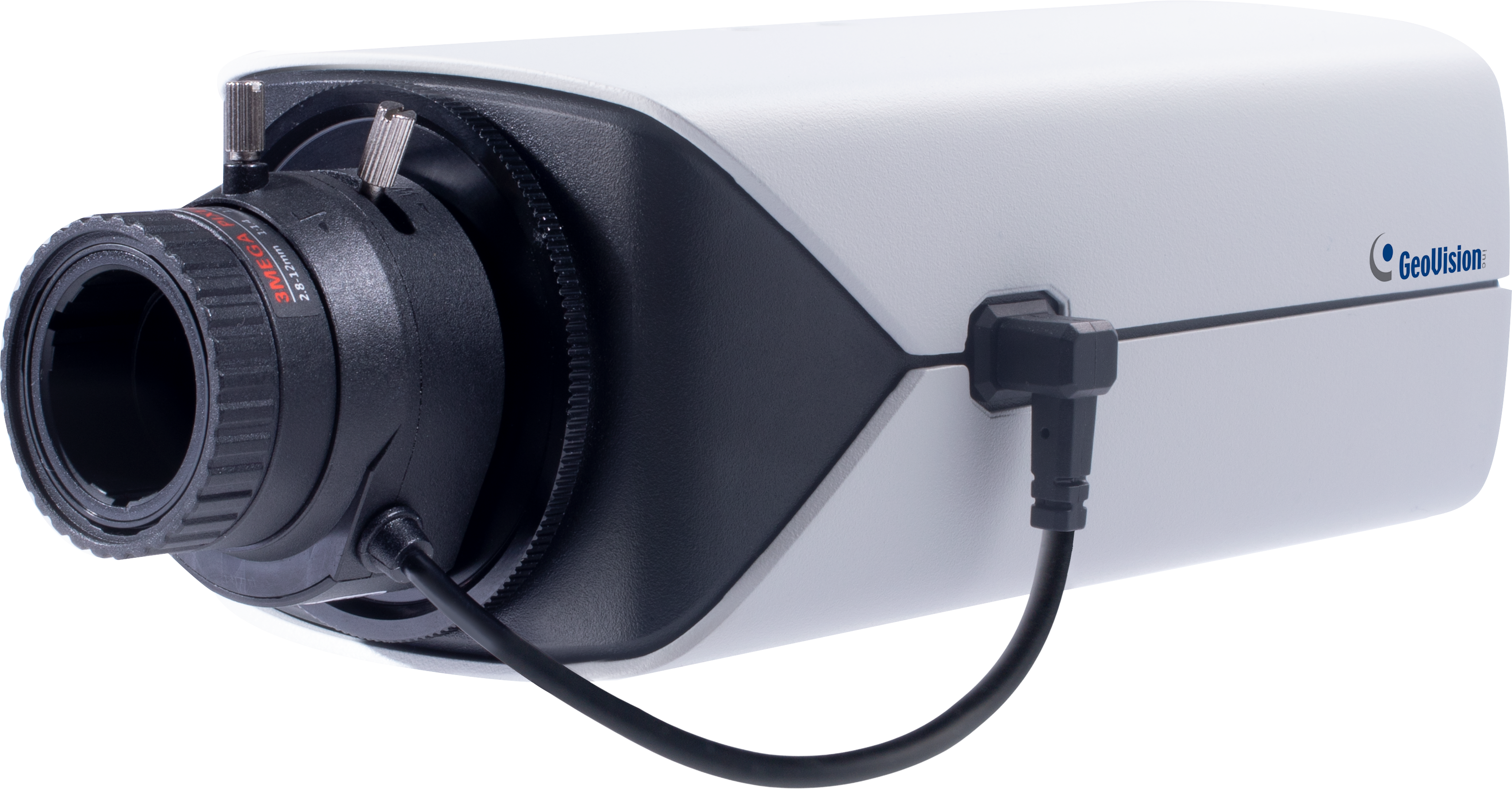

4MP H.265 Super Low Lux WDR Pro Box IP Camera

AI Deep-Learning IP Camera

GV‐BX4802 is a 4 MP network camera equipped with an automatic IR-cut filter for day and night surveillance. Fixed / Iris lens are optional for the camera for a more comprehensive performance depending on different needs. GV‐BX4802 supports H.265 / H.264 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in near darkness.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (GV-VMS), it supports AI perimeter protection, real-time alert, playback and more.

Models

Model GV-BX4802
Iris DC Iris
Focal Length (mm) /
Horizontal FOV /
Maximum Aperture /
Image Format 1/3″

Key Features

  • 1/3″ progressive scan CMOS sensor
  • Min. illumination at 0.0028 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 2592 x 1520
  • Day and Night function (with removable IR-cut filter)
  • Wide Dynamic Range Pro (WDR Pro)
  • Wide temperature tolerance (-30°C ~ 60°C / -22°F ~ 140°F)
  • Built-in microphone
  • Two-way audio capable
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • DC 12V / AC 24V / PoE (IEEE 802.3af)
  • AI analytics (Line Crossing, Region Entrance, Region Exiting, Target Counting, Region Intrusion, Face Detection, Heat Map)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant

Note:

  • Users need to purchase camera lens separately.
  • Specifications are subject to change without notice.

Overview


Note:

  • Users need to purchase camera lens separately.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
Fixed 2.8 mm Lens Horizontal FOV: 82°
Maximum Aperture: F/2.0
Image Format: 1/2.7″
Dimension: Ø30 x 18.2 mm (Ø1.18″ x 0.71″)
DC-Iris 2.8 mm – 12 mm Lens Horizontal FOV: 126° ~ 55°
Maximum Aperture: F/1.8
Image Format: 1/2.7″
Dimension: Ø34 x 50.2 mm (Ø1.33″ x 1.98″)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-BX4802 Box IP Camera (No Lens)
  • 2-Pin Terminal Block
  • Download Guide

Note:

  • Users need to purchase camera lens separately.
  • Specifications are subject to change without notice.
