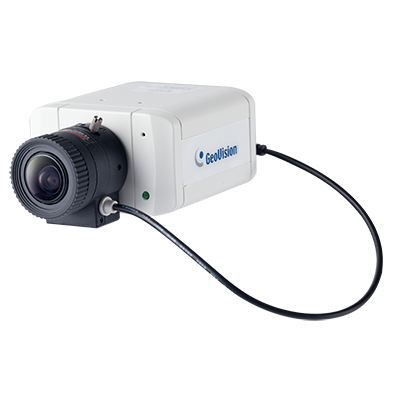

GV-BX8700-FD

Description

8MP H.265 Super Low Lux WDR Pro Face Detection Box IP Camera

GV-BX8700-FD is specifically designed for face detection. The camera can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is equipped with a super low lux CMOS image sensor which allows the camera to provide a color live view in near darkness. The camera features a mini USB port which supports wireless connection through a GV-WiFi Adapter (optional) or external storage using a USB hard drive.

Models

Model	GV-BX8700-FD
Iris	P-Iris
Focal Length (mm)	3.6~10mm
Horizontal FOV	108°~48°
Maximum Aperture	F/1.5
Image Format	1/1.8″

Key Features

1/2″ progressive scan super low lux CMOS sensor
Min. illumination at 0.03 lux
Triple streams from H.265, H.264 and MJPEG
Up to 30 fps at 3840 x 2160
P-Iris for auto iris adjustment
Built-in / external microphone
Two-way audio capable
One sensor input and one alarm output
TV-out support
Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
Mini USB slot for WiFi Adapter or USB hard drive
Wide Dynamic Range Pro (WDR Pro)
Face Detection
3D noise reduction
Smart streaming
Defog
Privacy mask
IP address filtering
DC 12V / PoE (IEEE 802.3af)
Day and Night function (with removable IR-cut filter)
Megapixel varifocal lens
Support for iPhone, iPad, Android & 3GPP
31 languages on Web interface
ONVIF (Profile S, T) conformant

Note:

Specifications are subject to change without notice.

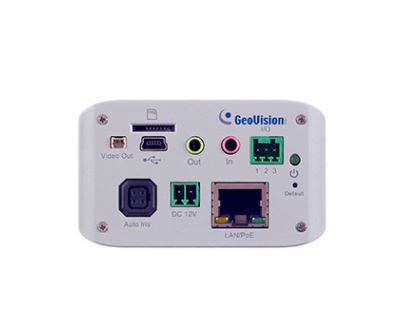

Overview

Note:

Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount300-1	Convex Corner Adapter Kit		Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″) Weight: 4.27 kg (9.41 lb)
GV-Mount310-1	Concave Corner Adapter Kit		Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″) Weight: 2.96 kg (6.53 lb)
GV-Mount400-1	Pole Mount Bracket Kit (Ø 4 ~ 6″)		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6″
GV-Mount410-1	Pole Mount Bracket Kit (Ø 6 ~ 7.5″)		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5″
GV-Housing102	Housing Box (with heater and fan)		Dimensions: 406 x 145 x 109 mm (16 x 5.7 x 4.3″) Weight: 4.69 kg (10.34 lb) (including Supporting Tube) Start-up Temperature: -30°C ~ 50°C (-22°F ~ 122°F) Operation Temperature: ‐40°C ~ 50°C (-40°F ~ 122°F) Heater: 15°C (59°F) On / 25°C (77°F) Off Fan: 35°C (95°F) On / 25°C (77°F) Off Power board: 24V AC / 12V DC input GV-BX5700-8F not supported
GV-Housing103	Housing Box (with IR)		Dimensions: 404 x 128 x 257 mm (15.91 x 5.04 x 10.12″) Weight: 7 kg (15.43 lb) Start-up Temperature: ‐20°C ~ 50°C (‐4°F ~ 122°F) Operation Temperature: ‐30°C ~ 50°C (‐22°F ~ 122°F) IR: 6 IR LEDs with up to 60m (196.85ft) IR effective distance Power: 12V DC, 1A inputGV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
Supporting Rack			Dimensions: Ø 58 x 120 mm (2.28″ x 4.72″) Weight: 0.1 kg (103 g)
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2			The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-WiFi Adaptor V2			Dimensions (H x W x D): 15 x 15 x 155 mm (0.59 x 0.59 x 6.10″) Weight: 0.01 kg (0.02 lb)
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
