GV-DFK1355

Categories: ,

Description

Keypad Reader

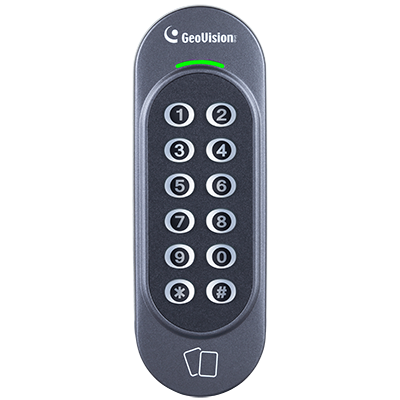

GV-DFK1355 is a keypad reader capable of reading PIN codes and access cards. It features a slim profile design, making it suitable for installation on a narrow door frame or in tight spaces. Thanks to its Wiegand and RS-485 interfaces, GV-DFK1355 can be connected to a variety of access control systems. With an ingress protection rating of IP66, the reader can be used in any environment.

Additionally, the GV-DFK1355 reader, which has two inputs (Exit Button and Door Sensor) and one output (Door Lock), can control a single door when combined with the GV-AS Bridge controller and the cloud-based software GV-Cloud Access Control.

Key Features

  • Access control card and PIN code recognition
  • Wiegand and RS-485 interfaces
  • OSDP communication through RS-485
  • 13.56 MHz ISO 14443A
  • MIFARE® DESFire® card support
  • GeoVision access cards with GID (GeoVision Identifier) support
  • Ingress protection (IP66)
  • Case sensor detection for tempering alarm
  • 12-key keypad with white backlight

Note:

  • The OSDP communication is compatible with third-party controllers.
  • Currently, only the GV-AS1620 and GV-CS1320 controllers support the OSDP communication. Use the Wiegand interface instead to connect to other GV-AS Controllers.
  • The rear panel of the reader has waterproofing rubber rings. Install the reader tightly against the wall to prevent water from entering along the wall. Apply silicone sealant to the sides of the reader if it is mounted on an uneven surface.
  • The reader only supports US gang box size standards.
  • Specifications are subject to change without notice.

Overview

Note:

  • The OSDP communication is compatible with third-party controllers.
  • Currently, only the GV-AS1620 and GV-CS1320 controllers support the OSDP communication. Use the Wiegand interface instead to connect to other GV-AS Controllers.
  • The rear panel of the reader has waterproofing rubber rings. Install the reader tightly against the wall to prevent water from entering along the wall. Apply silicone sealant to the sides of the reader if it is mounted on an uneven surface.
  • The reader only supports US gang box size standards.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
Access Card / Fob / Sticker / Tag GeoVision provides a variety of access cards, fobs, stickers, and tags to meet your needs. Please refer to the product datasheet for information on compatible frequencies and accessories.

Packing List

  • GV-DFK1355
  • Cable
  • Hex Key Wrench
  • Screw x 3
  • Quick Start Guide

Note:

  • The OSDP communication is compatible with third-party controllers.
  • Currently, only the GV-AS1620 and GV-CS1320 controllers support the OSDP communication. Use the Wiegand interface instead to connect to other GV-AS Controllers.
  • The rear panel of the reader has waterproofing rubber rings. Install the reader tightly against the wall to prevent water from entering along the wall. Apply silicone sealant to the sides of the reader if it is mounted on an uneven surface.
  • The reader only supports US gang box size standards.
  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-DFK1355
