GV-DFR1352

Categories: ,

Description

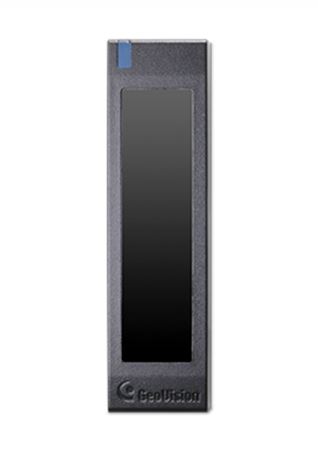

Door Frame Card Reader (Rev. B)

The GV-DFR1352 is a card reader designed to be installed on the door frame for recognizing access control cards. Featured with the Wiegand and RS-485 outputs, the unit can be connected to any standard access control panel. GV-DFR1352 comes with a weather sealed and IP66 compliant housing for outdoor use.

Key Features

  • Weather-proof and IP66-compliant housing (for outdoor use)
  • Wiegand interface for third-party integration
  • RS-485 interface for longer distance installation
  • 13.56 MHz for ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic)
  • GeoVision access cards with GID (GeoVision Identifier) to enhance security
  • UL 294 compliance

Note:

  • RS485 interface only supports GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26/34 Bits).
  • GID is only supported by GV-DFR1352 (Rev. B) firmware V1.2 or later.
  • UL 294 Attack Class Level 1 depends on other connected equipment.
  • If you are using third-party cards or key fobs, the reader must be under UID mode.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
Access Card / Fob / Sticker / Tag GeoVision offers a wide range of access cards, fobs, stickers, and tags to meet your needs. Please refer to the product datasheet for information on compatible frequencies and accessories.
GV-FWC GV-FWC integrates GeoVision face-recognition-based cameras, software and readers into access control systems by sending access card data, paired to Face IDs, to controllers either through TCP/IP or Wiegand connection.

Packing List

  • GV-DFR1352 Card Reader
  • Screw x 2
  • Screw Anchor x 2
  • Front Cover Plate x 2
  • Software CD
  • Installation Guide
  • Warranty Card

Note:

  • RS485 interface only supports GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26/34 Bits).
  • GID is only supported by GV-DFR1352 (Rev. B) firmware V1.2 or later.
  • UL 294 Attack Class Level 1 depends on other connected equipment.
  • If you are using third-party cards or key fobs, the reader must be under UID mode.
  • Specifications are subject to change without notice.
