GV-EBD2704

Categories: ,

Description

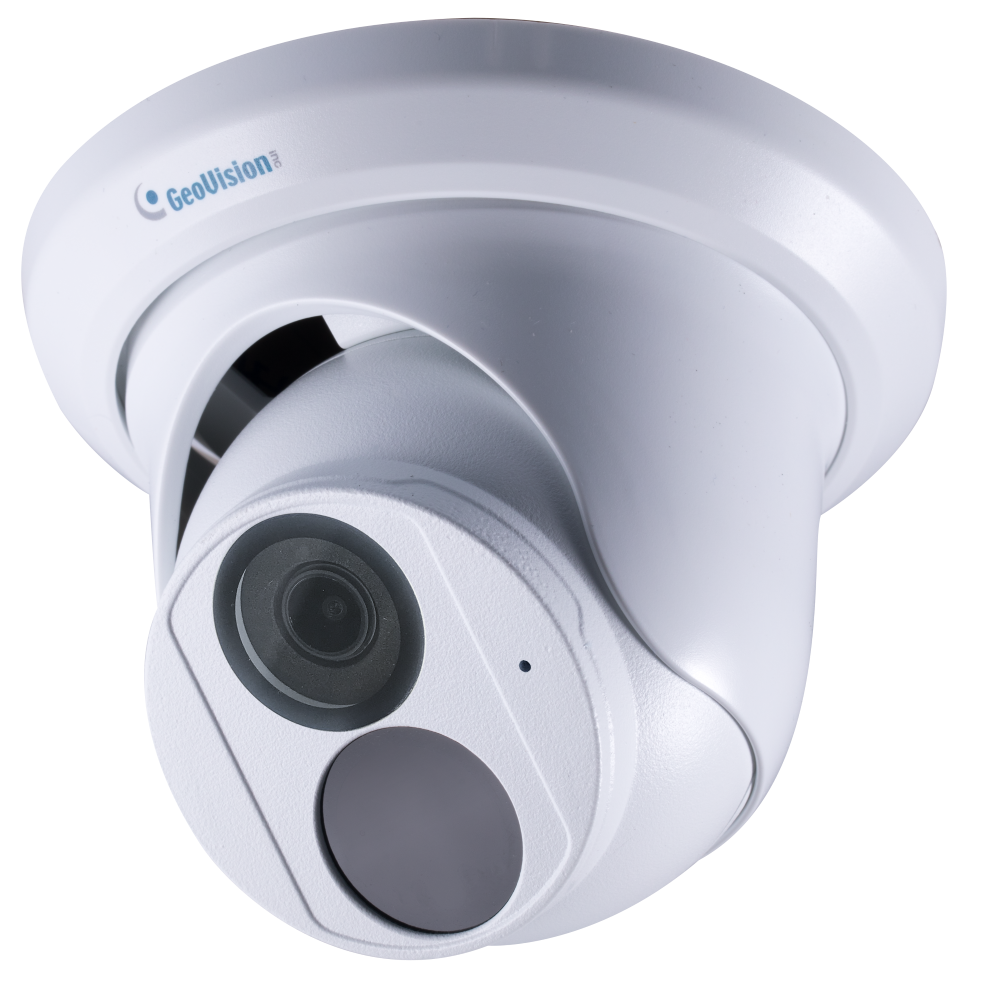

2MP H.265 Low Lux WDR Pro IR Eyeball IP Dome

EBD2704 is an outdoor, network camera equipped with an automatic IR‐cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.

Models

Model GV-EBD2704
Iris Fixed
Focal Length (mm) 2.8mm
Horizontal FOV 113°
Maximum Aperture F/2.0
Image Format 1/2.7″

Key Features

  • 1/2.7″ progressive scan low lux CMOS sensor
  • Min. illumination at 0.01 lux
  • Dual streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 1920 × 1080
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Built-in microphone
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Wide Dynamic Range Pro (WDR Pro)
  • Ingress protection (IP67)
  • DC 12V / PoE (IEEE 802.3af)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant

Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • No memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.

Overview



Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • No memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.



Accessories



Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount212P
GV-Mount211P Wall Mount and Junction Box Dimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″)
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount Dimensions: Φ126 x 36 mm (Φ5.0″ x 1.4″)
Weight: 0.22 kg (0.48 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″)
*must be used with GV-Mount211P
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.



Packing List

  • GV-EBD2704 Eyeball Dome
  • Waterproof Rubber Set
  • Screw kit
  • Drill Template Paster
  • Download Guide

Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • No memory card slot & local storage function for Argentina.
  • Specifications are subject to change without notice.
