GV-EBD4701

Categories: ,

Description

4MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera

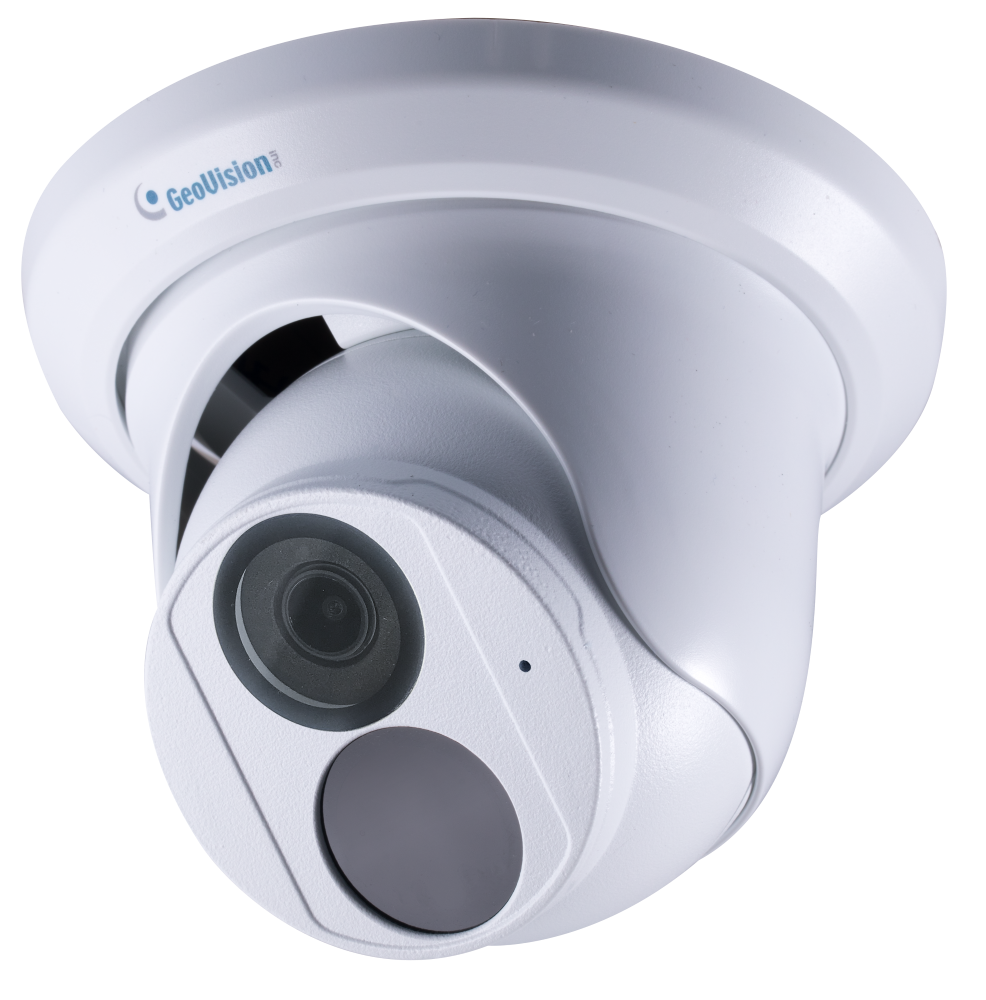

GV-EBD4701 is an outdoor, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.

Models

Model GV-EBD4701
Iris Fixed
Focal Length (mm) 2.8mm
Horizontal FOV 107°
Maximum Aperture F/2.0
Image Format 1/3”

Key Features

  • 1/3″ progressive scan super low lux CMOS
  • Triple streams from H.265, H.264 or MJPEG
  • Min. illumination at 0.01 lux
  • Up to 30 fps at 2688 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Built-in microphone
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Wide Dynamic Range Pro (WDR Pro)
  • Ingress protection (IP67)
  • DC 12V / PoE (IEEE 802.3af)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • ONVIF (Profile G, S, T) conformant

Note:

  • Specifications are subject to change without notice.

Overview



Note:

  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount212P
GV-Mount211P Wall Mount and Junction Box Dimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″)
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount Dimensions: Φ126 x 36 mm (Φ5.0″ x 1.4″)
Weight: 0.22 kg (0.48 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″)
*must be used with GV-Mount211P
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • V-EBD4701 Eyeball Dome
  • Waterproof Rubber Set
  • Screw kit
  • Drill Template Paster
  • Download Guide
  • Warranty Card

Note:

  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-EBD4701
