GV-EBD4712

Description

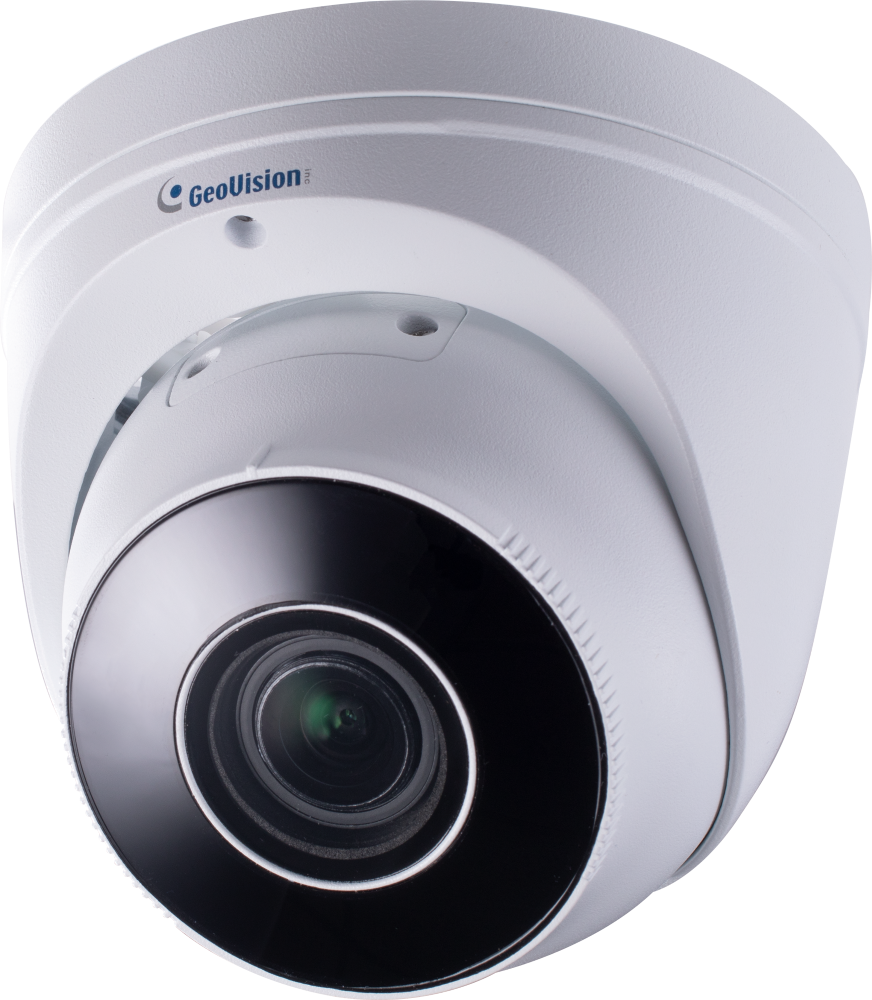

4MP H.265 4.3x Super Low Lux WDR Pro IR Eyeball Dome IP Camera

GV-EDB4712 is an outdoor, network camera equipped with an automatic IR-cut filter and 2 IR LEDs for day and night surveillance. With its motorized lens, the user can zoom and focus the camera from the Web interface. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.

Models

Model	GV-EBD4712
Iris	Fixed
Focal Length (mm)	2.8~12mm
Horizontal FOV	98°~31°
Maximum Aperture	F/1.6
Image Format	1/3”

Key Features

1/3″ progressive scan super low lux CMOS
Min. illumination at 0.003 lux
Triple streams from H.265, H.264 or MJPEG
Up to 30 fps at 2688 x 1520
Motorized varifocal lens for remote focus / zoom adjustment
Intelligent IR
IR distance up to 30 m (100 ft)
Built-in microphone
Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
3-axis mechanism (pan / tilt / rotate)
Ingress protection (IP67)
Vandal resistance (IK10 for metal casing)
Day and Night function (with removable IR-cut filter)
DC 12V / PoE (IEEE 802.3af)
Wide Dynamic Range Pro (WDR Pro)
Defog
3D noise reduction
Motion detection
Tampering alarm
Text overlay
Privacy mask
ONVIF (Profile G, S, T) conformant

Note:

Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
Specifications are subject to change without notice.

Overview

Note:

Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount107	Pendant Bracket		Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″) Weight: 0.74 kg (1.63 lb) *must be used with GV-Mount212P
GV-Mount211P	Wall Mount and Junction Box		Dimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″) Weight: 1 kg (2.2 lb)
GV-Mount212P	Wall Box Mount		Dimensions: Φ126 x 36 mm (Φ5.0″ x 1.4″) Weight: 0.22 kg (0.48 lb)
GV-Mount300-2	Convex Corner Mount		Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″) Weight: 1.65 kg (3.64 lb)
GV-Mount310-2	Concave Corner Mount		Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″) Weight: 1.65 kg (3.64 lb)
GV-Mount420	Pole Mount Bracket		Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″) Weight: 0.45 kg (0.99 lb) Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″) *must be used with GV-Mount211P
GV-Mount704	Extension Tube		Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″) Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb) *must be used with GV-Mount107
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.

Packing List

GV-EBD4712 Eyeball Dome
Waterproof Rubber Set
Screw kit
Drill Template Paster
Download Guide
Warranty Card

Note:

Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
Specifications are subject to change without notice.
