Description

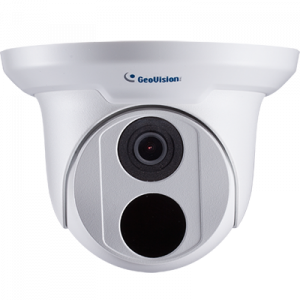

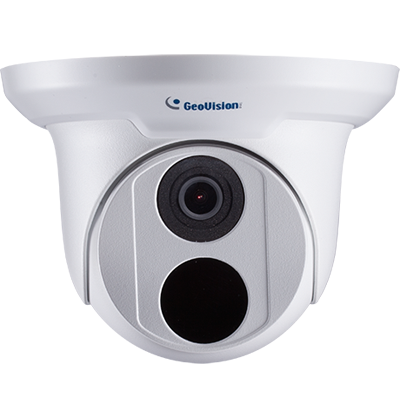

8MP H.265 Low Lux WDR Pro IR Eyeball IP Dome

The H.265 Target Eyeball Dome is an outdoor, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards and supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.

Models

Model GV-EBD8700
Iris Fixed
Focal Length (mm) 2.8mm
Horizontal FOV 106°
Maximum Aperture F/2.0
Image Format 1/2.5″

Key Features

  • 1/2.5″ progressive scan low lux CMOS
  • Min. illumination at 0.05 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 3840 x 2160
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Wide Dynamic Range Pro (WDR Pro)
  • Ingress protection (IP67)
  • DC 12V / PoE (IEEE 802.3af)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • ONVIF (Profile S, T) conformant

Note:

  • It is required to apply patch files to some of the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Overview



Note:

  • It is required to apply patch files to some of the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Accessories

Model NoNameDetailsGV-Mount107Pendant BracketDimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount212PGV-Mount211PWall Mount and Junction BoxDimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″)
Weight: 1 kg (2.2 lb)GV-Mount212PWall Box MountDimensions: Φ126 x 36 mm (Φ5.0″ x 1.4″)
Weight: 0.22 kg (0.48 lb)GV-Mount300-2Convex Corner MountDimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)GV-Mount310-2Concave Corner MountDimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)GV-Mount420Pole Mount BracketDimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″)
*must be used with GV-Mount211PGV-Mount704Extension TubeDimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107GV-PA191 PoE AdapterPower over Ethernet (PoE) AdapterThe GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.GV-POE SwitchGV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.Power AdapterContact our sales representatives for the countries and areas supported.

Packing List

  • GV-EBD8700 IR Eyeball Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide
  • Warranty Card

Note:

  • It is required to apply patch files to some of the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
