GV-EBD8711

Categories: ,

Description

8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Eyeball IP Dome

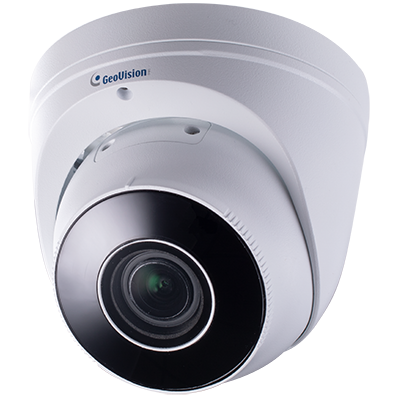

The H.265 Target Eyeball Dome is an outdoor, network camera equipped with an automatic IR-cut filter and 2 IR LEDs for day and night surveillance. With its motorized lens, the user can zoom and focus the camera from the Web interface. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

Models

Model GV-EBD8711
Iris Fixed
Focal Length (mm) 2.8~12mm
Horizontal FOV 114.8°~47.3°
Maximum Aperture F/1.5
Image Format 1/2″

Key Features

  • 1/2″ progressive scan super low lux CMOS sensor
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Built-in microphone
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Ingress protection (IP67)
  • Vandal resistance (IK10 for metal casing)
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • ONVIF (Profile G, S, T) conformant
  • CE, FCC, RoHS compliant

Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Overview


Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount212P
GV-Mount211P Wall Mount and Junction Box Dimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″)
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount Dimensions: Φ126 x 36 mm (Φ5.0″ x 1.4″)
Weight: 0.22 kg (0.48 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″)
*must be used with GV-Mount211P
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • H.265 Target Eyeball Dome
  • Waterproof Rubber Set
  • Screw x 3
  • Screw Anchor x 3
  • Drill Template Paster
  • Download Guide
  • Warranty Card

Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
