GV-EBD8813

Categories: ,

Description

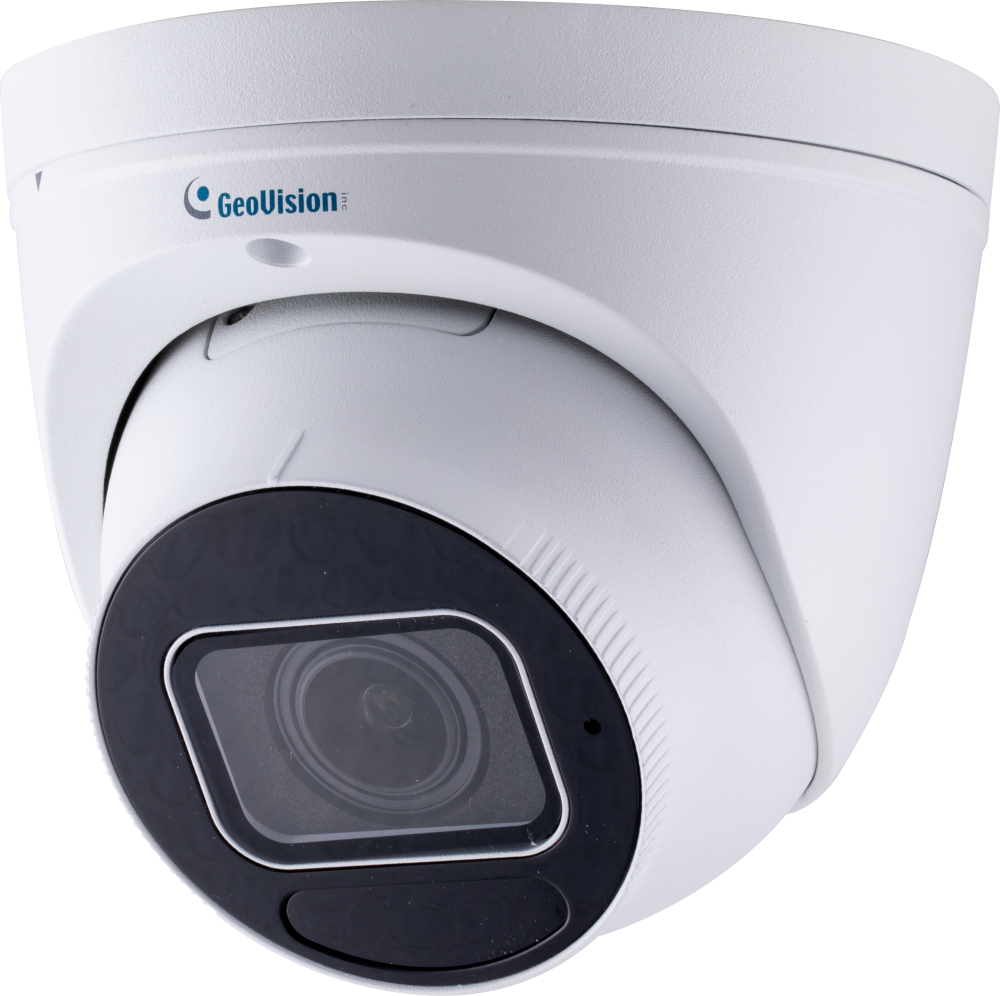

AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Eyeball IP Dome

AI Deep-Learning IP Camera

The Eyeball Dome IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-EBD8813 adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Models

Model GV-EBD8813
Iris Motorized varifocal lens
Focal Length (mm) 2.8~12mm
Horizontal FOV 107°~29°
Maximum Aperture F/1.6
Image Format 1/2.8″

Key Features

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.8″ progressive scan super low lux CMOS sensor
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 3840 x 2160
  • Intelligent IR
  • IR distance up to 40 m (130 ft)
  • Day and Night function (with removable IR-cut filter)
  • Motorized varifocal lens for remote focus / zoom adjustment
  • 3-axis mechanism (pan / tilt / rotate)
  • Wide Dynamic Range Pro (WDR Pro)
  • Ingress protection (IP67)
  • Vandal resistance (IK10 for metal casing)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Built-in microphone
  • DC 12V / PoE (IEEE 802.3af)
  • ONVIF (Profile G, S, T) conformant

Note:

  • The integration of AI events of the camera to GV-VMS is coming soon.
  • Specifications are subject to change without notice.

Overview





Note:

  • The integration of AI events of the camera to GV-VMS is coming soon.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount212P
GV-Mount211P Wall Mount and Junction Box Dimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″)
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount Dimensions: Φ126 x 36 mm (Φ5.0″ x 1.4″)
Weight: 0.22 kg (0.48 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″)
*must be used with GV-Mount211P
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-EBD8813 IR Eyeball Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide

Note:

  • The integration of AI events of the camera to GV-VMS is coming soon.
  • Specifications are subject to change without notice.
