GV-EBDP5800

Categories: ,

Description

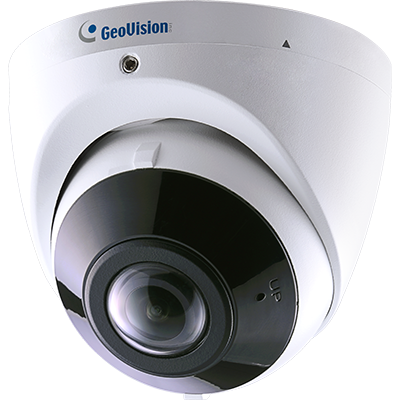

5MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera

AI Deep-Learning IP Camera

The panoramic eyeball IP camera is an outdoor, network camera that captures 180° horizontal coverage, providing a wide coverage of view for open and large areas with just one camera. It is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. GV-EBDP5800 adheres to IK10 and IP67 standards, and can be powered through PoE. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, event playback and more.

Models

Model GV-EBDP5800
Iris Fixed
Focal Length (mm) 1.68mm
Horizontal FOV 180°
Maximum Aperture F/2.0
Image Format Ø12mm

Key Features

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.7″ progressive scan CMOS sensor
  • Min. illumination at 0.01 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2880 x 1620
  • Intelligent IR
  • IR distance up to 20 m (65 ft)
  • Day and Night function (with removable IR-cut filter)
  • 180° panoramic view
  • AI analytics (Intrusion, Line Crossing, Region Entrance, Region Exiting)
  • 3D noise reduction
  • Wide Dynamic Range Pro (WDR Pro)
  • Motion detection / ultra motion detection
  • Ingress protection (IP67)
  • Vandal resistance (IK10 for metal casing)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Built-in microphone
  • DC 12V / PoE (IEEE 802.3af)
  • Tampering alarm
  • Defog
  • Text overlay
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant

Note: Specifications are subject to change without notice.

Overview




Note: Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount213
GV-Mount211P Wall Mount and Junction Box Dimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″)
Weight: 1 kg (2.2 lb)
GV-Mount213 Wall / Ceiling Box Mount Dimensions: Φ109 x 39 mm (Φ4.3″ x 1.5″)
Weight: 0.2 kg (0.44 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″)
*must be used with GV-Mount211P
GV-Mount924 Power Box Mount Bracket Dimensions: Φ128 x 18.5 mm (5″ x 0.7″)
Weight: 0.15 kg (0.33 lb)
*for standard US single and double gang boxes only
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-PA301 Gigabit PoE Adapter GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-EBDP5800 IR Eyeball Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Torx Wrench
  • Download Guide

Note: Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-EBDP5800
