GV-EBL4702

Categories: ,

Description

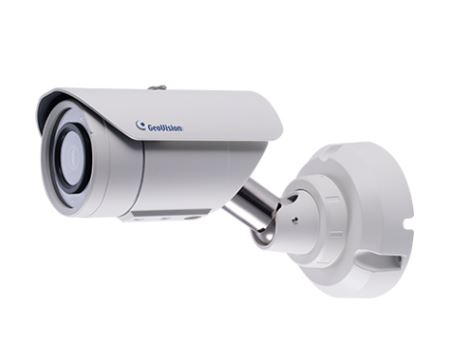

4MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera

The Target Bullet Camera is a lightweight camera designed for outdoor environments. It adheres to the IP67 standard and has full protection against dust and jets of water. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

Models

Model GV-EBL4702-2F GV-EBL4702-3F
Iris Fixed Fixed
Focal Length (mm) 3.8mm 2.8mm
Horizontal FOV 72° 96°
Maximum Aperture F/1.8 F/2.0
Image Format 1/2.7″ 1/2.7″

Key Features

  • 1/3″ progressive scan super low lux CMOS
  • Min. illumination at 0.02 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Smart streaming
  • Defog
  • Text overlay
  • Tampering alarm
  • 3D noise reduction
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Support for iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S, T) conformant
  • TAICS IoT Cyber Security Level 2 certified (suitable for commercial use)

Note:

  • Specifications are subject to change without notice.

Overview





Note:

  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6″) Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6″
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5″) Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5″
GV‐PA191 PoE Adapter Dimensions (H x W x D): 43 x 69 x 40 mm (1.69 x 2.72 x 1.57″)
Weight: 130 g (0.29 lb)
Power Adapter Contact our sales representatives for the countries and areas supported.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.

Packing List

  • H.265 Bullet Camera
  • Sun-Shield Cover
  • Screw for Sun-Shield Cover x 2
  • Screw for Supporting Rack x 3
  • Screw Anchor x 3
  • Silica Gel bag x 2
  • Washer x 2
  • Terminal Block
  • Screw for Mounting Kit x 3
  • Nut for Mounting Kit x 3
  • Hex Wrench
  • Download Guide
  • Warranty Card

Note:

  • Specifications are subject to change without notice.
