GV-EFD4700

Description

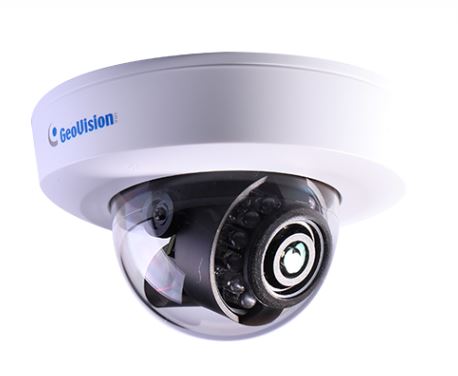

4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome

The Target Mini Fixed Dome is an indoor, fixed, mini-sized network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 2 axis (pan and tilt), it offers an entry-level surveillance solution with all the essential features and excellent image quality. GV-EFD4700 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.

Models

Model	GV-EFD4700-0F
Iris	Fixed
Focal Length (mm)	2.8 mm
Horizontal FOV	96°
Maximum Aperture	F/2.0
Image Format	1/2.7″

Key Features

1/3″ progressive scan super low lux CMOS
Min. illumination at 0.02 lux
Triple streams from H.265, H.264 and MJPEG
Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
Intelligent IR
Day and Night function (with removable IR-cut filter)
2-axis mechanism (pan / tilt)
Built-in microphone
Wide Dynamic Range Pro (WDR Pro)
3D noise reduction
Smart streaming
Defog
Motion detection
Tampering alarm
Text overlay
Privacy mask
IP address filtering
DC 12V / PoE (IEEE 802.3af)
Megapixel lens
Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
Support for iPhone, iPad, Android & 3GPP
31 languages on Web interface
ONVIF (Profile S, T) conformant
TAICS IoT Cyber Security certified

Note:

Specifications are subject to change without notice.

Overview

Note:

Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount910	Power Box Mount Bracket		Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3″) Weight: 105 g (0.23 lb)
GV-Mount913	Power Box Mount Bracket		Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3″) Weight: 180 g (0.4 lb)
GV-Mount918	Wall Mount Bracket for MFD/MDR/EFD/EDR		Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71 x4.60 x 3.78″) Weight: 350 g (0.77 lb)
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
