GV-FER12700

Categories: ,

Description

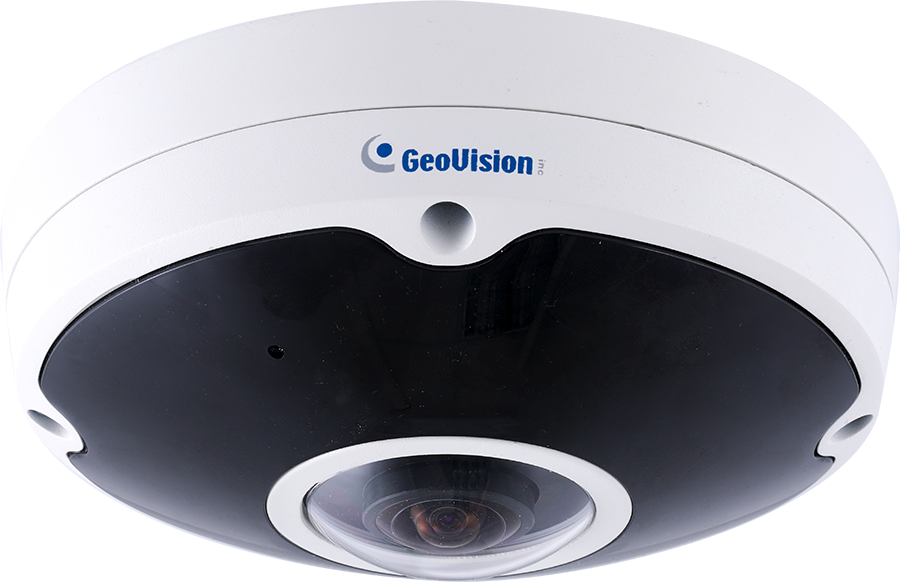

12MP H.265 Low Lux WDR IR Fisheye Rugged IP Camera

GV-FER12700 is a 12 MP outdoor fisheye camera that can be installed on the ceiling or the wall to monitor all angles of a location. GV-FER12700 supports H.265 video codec, which allows for better compression ratio while maintaining high video quality at reduced network bandwidths. Thanks to its automatic IR‐cut filter and IR LEDs, GV-FER12700 is capable of day and night surveillance. Through the Web interface, you can watch live view and utilize functions such as video recording, privacy mask and alert notifications without installing any software. In addition, the camera seamlessly integrates with GV-NVR and GV-VMS, providing extensive monitoring and video management features.

Models

Model GV-FER12700
Iris Fixed
Focal Length (mm) 1.2mm
Horizontal FOV 180°
Maximum Aperture F/2.2
Image Format 1/1.7″

Key Features

  • 1/1.7″ progressive scan CMOS
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 4000 x 3000
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • Vandal resistance (IK10+ for metal casing)
  • Ingress protection (IP67)
  • DC 12V / PoE+ (IEEE 802.3at)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • USB slot for GV-WiFi Adapter or USB hard drive
  • One sensor input and one alarm output
  • Built-in microphone
  • Digital Object Tracking
  • 360° and 180° panorama views
  • Stereographic projection to reduce the distortion of the image
  • Different angle of view accessible by multiple users at the same time
  • Playback from any view angle and zoom level
  • No mechanical moving parts
  • Two-way audio capable
  • Wide Dynamic Range (WDR)
  • Low lux enhancement
  • 3D noise reduction
  • Smart streaming
  • Tampering alarm
  • Virtual PTZ function
  • Auto Pan function
  • Privacy mask
  • Visual automation
  • Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • Recording assigned by GV-Edge Recording Manager (Windows version)

Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Overview





Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1″)
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″)
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Mount Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8″)
Weight: 900 g (1.98 lb)
GV-Mount203 Wall Mount and Junction Box Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9″)
Weight: 2.95 kg (6.5 lb)
GV-Mount206 Wall Box Mount Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96″
Weight: 0.93 kg (2.06 lb)
GV-Mount 208-2 Swan Neck Mount Dimension: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08″)
Weight: 10.5 kg (23.15 lb)
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7″)
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903-1 Dome Housing Dimensions: Ø 185.5 x 165.3 mm (Ø 7.3″ x 6.5″)
Weight: 900 g (1.98 lb)
GV-Mount904-1 Tilting Wall Mount Bracket Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3 x 1.6″)
Weight: 350 g (0.77 lb)
GV-Mount912 Power Box Mount Bracket Dimensions: Ø 146 x 10.5 mm (Ø 5.7 x 0.4″)
Weight: 180 g (0.4 lb)
GV-WiFi Adaptor V2 Dimensions (H x W x D): 15 x 15 x 155 mm (0.59 x 0.59 x 6.10″)
Weight: 0.01 kg (0.02 lb)
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • H.265 Fisheye Camera
  • Back Plate
  • Plate Screw x 3
  • Plastic Screw Anchor x 3
  • Torx Wrench
  • RJ-45 Connector
  • Data Cable
  • Terminal Block
  • Installation Sticker
  • Ruler
  • Silica Gel Bag x 2
  • Download Guide
  • Warranty Card

Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Video

Setting up GV-Fisheye Cameras on GV-VMS (GV-Fisheye Camera Dewarping on GV-VMS)

GV-Fisheye Camera Dewarping on GV-Video Wall


Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-FER12700
