GV-FER5702

Categories: ,

Description

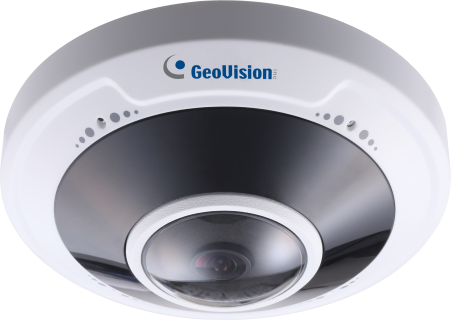

5MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera

GV-FER 5702 is a 5 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths. The camera adheres to IP66 and IK10 standards and can be powered through PoE. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image. It is also equipped with a built in micro SD card slot for local storage.

Models

Model GV-FER5702
Iris Fixed
Focal Length (mm) 1.4mm
Horizontal FOV 180°
Maximum Aperture F/2.0
Image Format 1/2.8″

Key Features

  • 1/2.8″ progressive scan CMOS sensor
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 2592 × 1944
  • Wide Dynamic Range Pro (WDR Pro)
  • Intelligent IR
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10)
  • Ingress protection (IP66)
  • One sensor input and one alarm output
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Built-in microphone
  • Two-way audio capable
  • No mechanical moving parts
  • DC 12V / PoE (IEEE 802.3af)
  • 2D / 3D noise reduction
  • Smart streaming
  • Tampering alarm
  • Virtual PTZ function
  • Auto Pan function
  • Privacy mask
  • Visual automation
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant

Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Overview



Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount212P
GV-Mount212P Wall Box Mount Dimensions: Φ126 x 36 mm (Φ5.0″ x 1.4″)
Weight: 0.22 kg (0.48 lb)
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • H.265 Fisheye Camera
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide

Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.
