GV-FR Panel

Categories: ,

Description

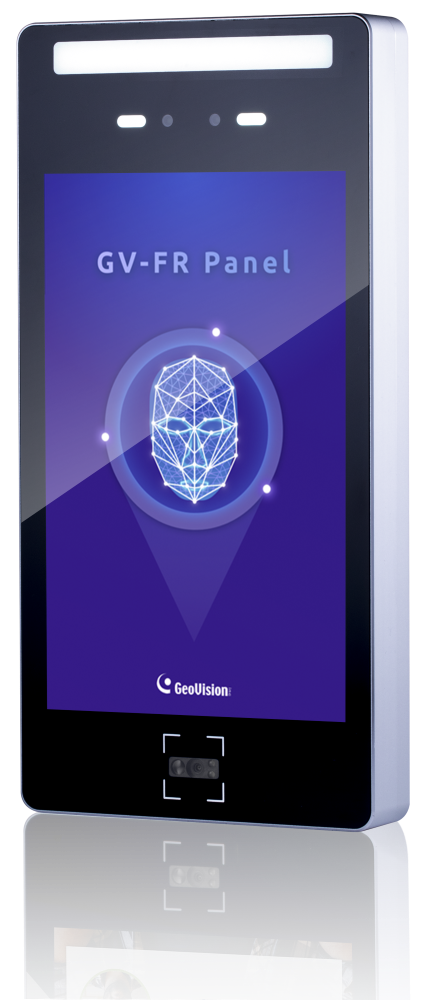

Face Recognition Panel with Built-in NFC / QR Code Reader and IPS Touch Screen

GV-FR Panel is a face-recognition-based access reader, with an 8″ LCD touchscreen that dispalys 800 x 1280 HD images. When connected to GeoVision access control systems, GV-FR Panel can grant or deny access based on a variety of credentials including face recognition, access cards and card + face double authentication. Additionally, GV-FR Panel can read QR codes from GV-ASManager’s Visitor Management System (GV-VMWeb) as well as the EU Digital COVID Certificate.

GV-FR Panel, with cutting-edge face recognition ability, can be integrated into any third-party Wiegand access control system. It combines AI video analytics with access control to provide a new level of convenience and security.

Key Features

  • Liveness detection (face spoofing detection)
  • Mask detection
  • Masked face recognition
  • Built-in LED light for nighttime and low-light face recognition
  • Three access modes: Face Only mode, Card or Face mode, Card + Face mode
  • Scanning QR codes of visitor access issued by GV-AS Manager’s visitor management system
  • Scanning QR codes of the EU Digital COVID Certificate
  • Integration with third-party Wiegand controllers
  • Mobile app supported for push notifications
  • 16 languages supported
  • CE, FCC, LVD, RoHS compliant
  • 8″ IPS touch screen with 800 x 1280 HD display
  • Face recognition distance of up to 1 m (3 ft)
  • Built-in RGB & IR cameras
  • 10,000 face image capacity
  • 10,000 access card capacity
  • Built-in 13.56 MHz reader for ISO 14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic)
  • Live streaming on GV-VMS (Coming soon)

Note:

  • All specifications are subject to change without notice.

Overview


Note:

  • All specifications are subject to change without notice.

Accessories

Model No Name Details
Access Card / Fob / Sticker / Tag GeoVision offers a wide range of access cards, fobs, stickers, and tags to meet your needs. Please refer to the product datasheet for information on compatible frequencies and accessories.
GV-FWC GV-FWC integrates GeoVision face-recognition-based cameras, software and readers into access control systems by sending access card data, paired to Face IDs, to controllers either through TCP/IP or Wiegand connection.
GV-Mount800 Surface Mount Dimensions: 209 x 54 x 69 mm (8.23″ x 2.13″ x 2.72″)
Weight: 449 g (0.99 lb)
GV-Mount801 Standing Mount Dimensions: 280 ×222 ×1205 mm (11.02″ x 8.74″ x 47.44″)
Weight: 7.75 kg (17.09 lb)
GV-Mount920 VESA / Power Box Mount Bracket Dimensions: 110 x 112 x 12 mm (4.33″ x 4.4″ x 0.47″)
Weight: 0.32 kg (0.53 lb)
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-FR Panel
  • Wall Mount Bracket kit
  • Wiegand cable
  • RJ-45 cable
  • USB Host PH2.0-4P cable
  • USB OTG PH2.0-4P cable
  • Power cable

Note:

  • All specifications are subject to change without notice.
