GV-FWC

Categories: ,

Description

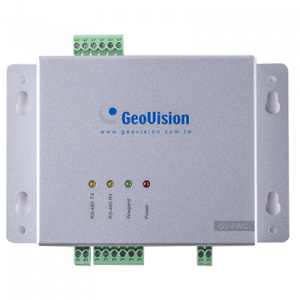

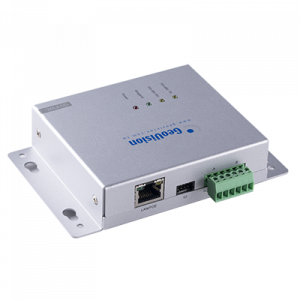

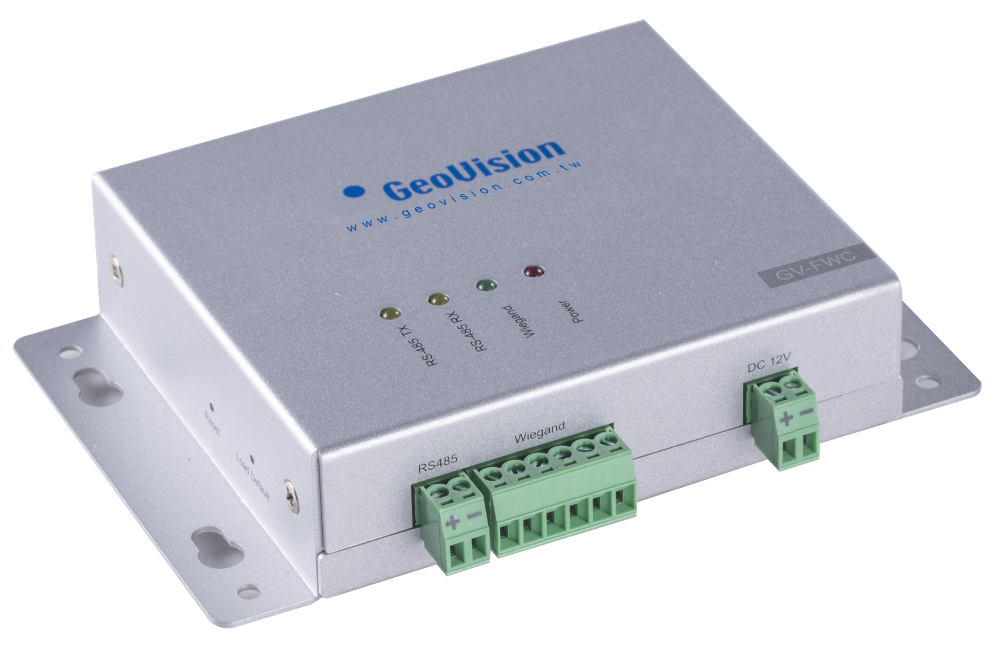

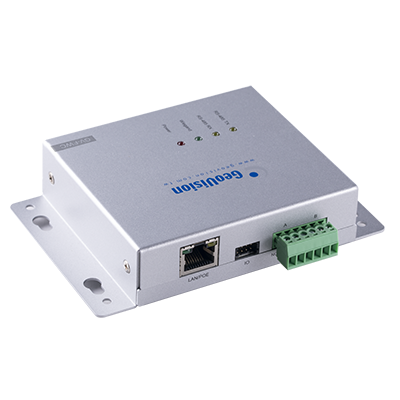

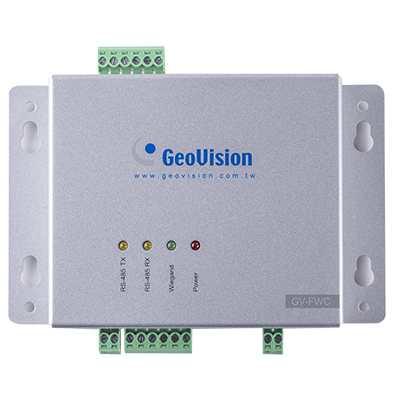

Converter for Sending Access Card Data, paired to Face IDs, to Controllers

GV-FWC integrates GeoVision face-recognition-based cameras, software and readers into access control systems by sending access card data, paired to Face IDs, to controllers either through TCP/IP or Wiegand connection. When connected via TCP/IP, a face image is transmitted along with the access data upon face recognition.

Additionally, the alarm output, e.g. a warning light, on GV-FWC can be triggered upon face recognition. For high security applications, GV-FWC can not only pass the face recognition access data to controllers but also require users to swipe paired cards on a connected Wiegand reader for double-authentication.

Key Features

  • Connection to controller via TCP/IP / Wiegand
  • DC 12V / PoE+ (IEEE 802.3at)
  • Support for up to 4 GV-Face Recognition Cameras / GV-AI FRs / GV-FR Panels
  • Alarm trigger upon face recognition of a Face Group
  • Connectable to a Wiegand reader for double-authentication, face recognition plus card swipe
  • Compatible with 3rd-party Wiegand controllers
  • GV-FWC can only be connected using CAT-5e cables, TIA/EIA-568-B, with a maximum DC resistance of 9.38 ohms/100 m.
  • All specifications are subject to change without notice.

Overview



  • GV-FWC can only be connected using CAT-5e cables, TIA/EIA-568-B, with a maximum DC resistance of 9.38 ohms/100 m.
  • All specifications are subject to change without notice.

Accesories

Model No Name Details
GV-PA901 PoE Adapter The GV-PA901 PoE adapter is designed to provide power and network connection to IP cameras over a single Ethernet cable.
Dimensions (L x W x H): 69 x 40 x 93 mm / 2.7 x 1.57 x 3.66″
Weight: 250 kg / 0.55 lb
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-FWC
  • Download Guide
  • Warranty Card
  • I/O Wires
  • GV-FWC can only be connected using CAT-5e cables, TIA/EIA-568-B, with a maximum DC resistance of 9.38 ohms/100 m.
  • All specifications are subject to change without notice.
