GV-GDR4900

Categories: ,

Description

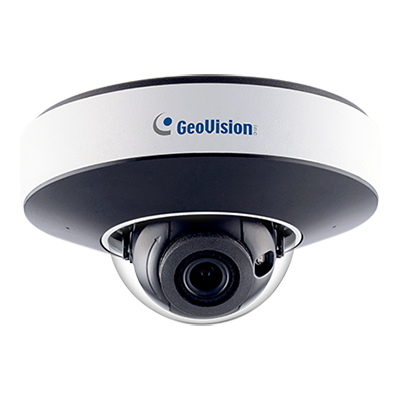

4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome

Cloud AI Deep-Learning IP Camera GV-GDR4900 is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IK10 and IP67 standards, and can be powered through PoE. Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more. By connecting the camera to the cloud-based data center and video surveillance solution, GV-Cloud VMS, thousands of on-site videos, alarm devices, and AI events can be monitored and managed from a single platform.

Models

Model GV-GDR4900
Iris Fixed
Focal Length (mm) 2.8mm
Horizontal FOV 95.3°
Maximum Aperture F/1.6
Image Format 1/3″

Key Features

  • Direct-to-Cloud
  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/3″ progressive scan CMOS sensor
  • Triple streams from H.265, H.264 or MJPEG
  • Min. illumination at 0.005 lux
  • Up to 30 fps at 2592 x 1520
  • Intelligent IR
  • IR distance up to 20 m (65 ft)
  • Day and Night function (with removable IR-cut filter)
  • Wide Dynamic Range Pro (WDR Pro)
  • Ingress protection (IP67)
  • 3-axis mechanism (pan / tilt / rotate)
  • Vandal resistance (IK10 for metal casing)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • Two-way audio capable
  • Built-in microphone
  • DC 12V / PoE (IEEE 802.3af)
  • Defog
  • 3D noise reduction
  • GV-Center V2 connection
  • AI analytics (Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Loitering Detection, Illegal Parking Detection, Face Detection, Video Metadata)
  • Motion detection
  • Text overlay
  • Privacy mask
  • 19 languages supported
  • ONVIF (Profile G, S, T, M) conformant

Note:

  • When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
  • Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
  • Specifications are subject to change without notice.

Overview


Note:

  • When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
  • Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount211-4 Wall Mount Bracket Dimensions: 129.8 x 154.9 x 74.4 mm (5.11″ x 6.1″ x 2.93″)
Weight: 0.527 kg (1.16 lb)
GV-Mount211-9 Wall Mount Bracket Dimensions: 148 x 121 mm (5.83″ x 4.76″)
Weight: 0.350 kg (0.77 lb)
*must be used with Mount509
GV-Mount509 Junction Box Dimensions: 112 x 40mm (4.72″ x 1.57″)
Weight: 0.231 kg (0.51 lb)
GV-PA191 PoE Adapter GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-PA301 Gigabit PoE Adapter GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-GDR4900 Mini Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Hex Key
  • Download Guide

Note:

  • When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
  • Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
  • Specifications are subject to change without notice.

Video

GV-Cloud Camera: Connecting GV-GEBF4911/GDR4900/GEB4900 to GV-Cloud VMS


Note:

  • When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
  • Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-GDR4900
