GV-GEBF4911

Categories: ,

Description

4MP H.265 4.3x Zoom Super Low Lux WDR Pro Full Color Warm LED IR Eyeball Dome IP Camera

Cloud AI Deep-Learning IP Camera

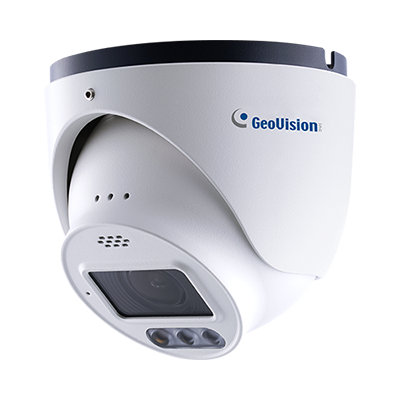

GV-GEBF4911 is an outdoor eyeball dome IP camera equipped with smart warm LEDs for full color surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-GEBF4911 adheres to IK10 and IP66 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. When integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more. By connecting the camera to the cloud-based data center and video surveillance solution, GV-Cloud VMS, thousands of on-site videos, alarm devices, and AI events can be monitored and managed from a single platform.

Models

Model GV-GEBF4911
Iris Motorized varifocal lens
Focal Length (mm) 2.8-12mm
Horizontal FOV 96°-32.33°
Maximum Aperture F/1.4
Image Format 1/3″

Key Features

  • Direct-to-Cloud
  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/3″ progressive scan CMOS sensor
  • Triple streams from H.265, H.264 or MJPEG
  • Min. illumination at 0.02 lux
  • Up to 30 fps at 2592 x 1520
  • Smart Warm LED distance up to 40 m (130 ft)
  • Intelligent IR
  • IR distance up to 40 m (130 ft)
  • Wide Dynamic Range Pro (WDR Pro)
  • Built-in microphone and speaker
  • Built-in micro SD card slot (SD/SDHC/UHS-I) for local storage
  • 3-axis mechanism (pan / tilt / rotate)
  • Ingress protection (IP66)
  • Vandal resistance (IK10 for metal casing)
  • DC 12V / PoE (IEEE 802.3af)
  • Defog
  • 3D noise reduction
  • GV-Center V2 connection
  • AI analytics (Line Crossing, Region Entrance, Region Exiting, Target Counting, Region Intrusion, Face Detection, Heat Map)
  • Active Deterrence: alarm sound and LED light triggered on AI detection events
  • Smart lighting switch between IR LED (for motion detection) and Warm LED (for people detection)
  • Motion detection
  • Text overlay
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant

Note:

  • When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
  • Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
  • Specifications are subject to change without notice.

Overview

Note:

  • When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
  • Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount506 Junction Box Dimensions: 139.3 x 171.6 x 50 mm (5.48″ x 2.81″ x 1.97″)
Weight: 0.512 kg (1.13 lb)
GV-Mount211-4 Wall Mount Bracket Dimensions: 129.8 x 154.9 x 74.4 mm (5.11″ x 6.1″ x 2.93″)
Weight: 0.527 kg (1.16 lb)
GV-Mount211-6 Wall Mount Bracket Dimensions: 199 x 139.3 x 140.9 mm (7.83″ x 5.48″ x 5.55″)
Weight: 0.56 kg (1.23 lb)
*must be used with Mount506
GV-PA191 PoE Adapter GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-PA301 Gigabit PoE Adapter GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-GEBF4911 Eyeball Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Hex Key
  • Drill Template Paster
  • Download Guide

Note:

  • When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
  • Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
  • Specifications are subject to change without notice.

Video

GV-Cloud Camera: Connecting GV-GEBF4911/GDR4900/GEB4900 to GV-Cloud VMS

Standard IR vs. Full Color

Note:

  • When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
  • Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-GEBF4911
