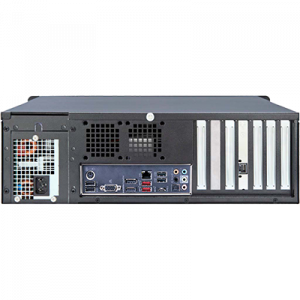

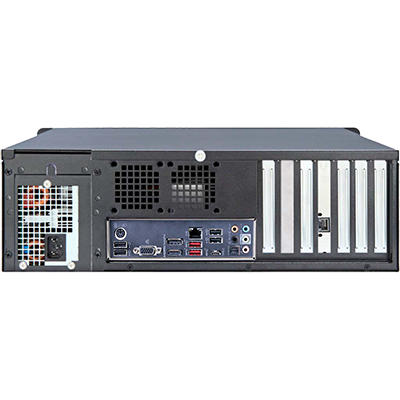

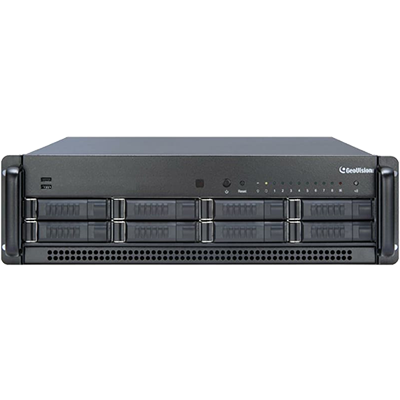

GV-Hot Swap System V5 RevG-3U,8-Bay

Description

The GV-Hot Swap System V5 (Rev. G) features a powerful data storage capacity with 3U 8-bay models and hot-swappable SATA mobile racks. Depending on HDD size, the GV-Hot Swap System V5 (Rev. G) can store up to 160 terabytes of recorded data. Support for hot-swapping makes data storage and management more convenient.

GeoVision surveillance software empowers the GV-Hot Swap System V5 (Rev. G) with a maximum of 32 audio and video channels for GV-NVR and 64 audio and video channels for GV-VMS. Its networking capability makes remote access and control of the system possible. Additionally, its compatibility with other GeoVision accessories can cater to any kind of needs or budgets. By extending the compatibility to the third-party IP devices (license required), GV-VMS/NVR software provides a pure IP solution to GV-Hot Swap System V5 (Rev. G).

Software Supported: GV-VMS / GV-NVR

Key Features

  • Powered by Intel Core i7 Processor
  • 64-bit Windows 10 IoT Enterprise
  • H.265 CPU and GPU decoding
  • 64-channel GV-VMS / 32-channel GV-NVR (pure IP surveillance)
  • Multiple monitor display for up to 3 monitors simultaneously
  • Maximum storage capacity up to 160 TB
  • Hot-swap status LED panel
  • Dual Gigabit LAN ports: 2.5 Gigabit, 1 Gigabit
  • Hot-swap SATA HDDs for data storage
  • Extreme performance for GV-NVR operation
  • RAID type: 0, 1, 5, 6, 10, 50, 60 (optional)
  • Redundant power supply (optional)
  • Compatible with full selections of GeoVision accessories
  • CE, FCC, LVD compliant

Note:

  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Data Capture V3 Box GV‐Data Capture allows the integration of POS systems and the GeoVision surveillance system through cable or network connection.
GV-IO Box Series GV-IO Box series provides 4 / 8 / 16 inputs and relay outputs and support both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE connection.
GV-Joystick V2 GV-Joystick V2 allows you to easily control PTZ cameras. It can be either plugged into the GV-VMS system for independent use or connected to GV-Keyboard to empower the operation.
GV-Keyboard V3 GV-Keyboard V3 is used to program and operate the GeoVision surveillance system. You can also connect PTZ cameras directly to the keyboard for PTZ control.
Gigabit Network Card Gigabit Network Card is provided with the two options of 1-Gb single port card and 2-port 10-Gb (20 Gb) card. The supported number of network cards varies based on models and the combination of RAID card. Contact our sales representatives for more information.
RAID Card The supported RAID types include 0, 1, 5, 6, 10, 50, 60.
Redundant Power Supply Redundant Power Supply comes with 2 hot-swap modules. When 1 module is down, the other module can still supply full power to the system: 460 W 1+1 mode; 100 ~ 240 V, 47 ~ 63 Hz.

Packing List

  • GV-Hot Swap System V5 (Rev.G)
  • AC Power Cord x 1
  • Self-Stick Rubber Pad x 4
  • Documents Download Guide
  • Warranty Card​

Note:

  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-Hot%20Swap%20System%20V5%20RevG-3U,8-Bay
