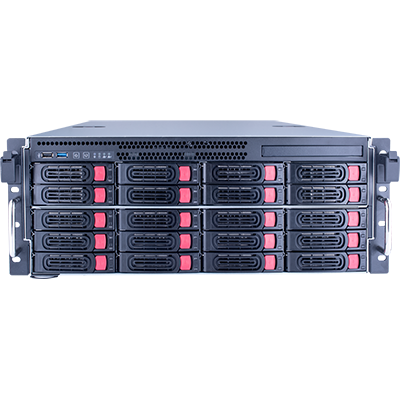

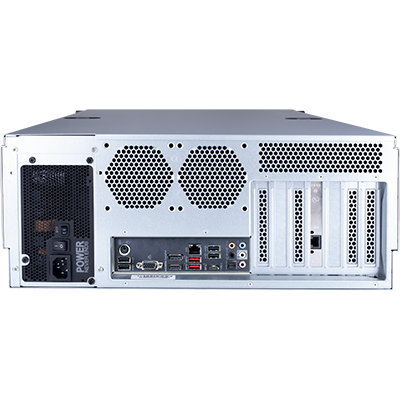

GV-Hot Swap System V6 RevB-4U,20-Bay

Categories: ,

Description

GV-Hot Swap System V6 (Rev. B) features a powerful data storage capacity. It comes with hot-swappable SATA mobile racks in sizes of 4U (20-bay) and 2U (12 / 8-bay). Depending on HDD capacity, GV-Hot Swap System V6 (Rev. B) can store up to 400 terabytes of recorded data.

GeoVision surveillance software empowers GV-Hot Swap System V6 (Rev. B) with a maximum of 64 audio and video channels for GV-VMS, and 32 audio and video channels for GV-NVR. When installed with GV-Recording Server, GV-Hot Swap System V6 (Rev. B) can record up to 256 channels and distribute up to 600 channels to a variety of GeoVision software.

Software Supported: GV-NVR / GV-VMS / GV-Recording Server

Key Features

  • Powered by Intel Core i7 Processor
  • 64-bit Windows 10 IoT Enterprise
  • RAM 8 GB (for GV-NVR) / 16 GB (for GV-VMS / GV-Recording Server)
  • H.265 CPU and GPU decoding
  • Maximum storage capacity of up to 400 TB (4U 20-Bay) / 240 TB (2U 12-Bay) / 160 TB (2U 8-Bay)
  • Hot-swap SATA HDDs for data storage
  • Hot-swap status LED panel
  • Dual 2.5 Gigabit LAN ports for GV-VMS / NVR and three 2.5 Gigabit LAN ports for GV-Recording Server
  • Multiple monitor display for up to 3 monitors
  • RAID type: 0, 1, 5, 6, 10, 50, 60 (optional)
  • Sliding rail kit for rackmount chassis with loading up to 80 KG
  • Redundant power supply (optional)
  • Compatible with full selections of GeoVision accessories
  • 64-channel GV-VMS / 32-channel GV-NVR (pure IP surveillance)
  • Up to 256 channels of recording and up to 600 channels of client distribution (for GV-Recording Server)
  • Extreme performance for preinstalled GV-VMS / NVR / Recording Server software
  • Anti-vibration feature to provide the disk throughput of 95% or higher
  • CE, FCC, LVD compliant (by request)

Note:

  • 2U (8-bay) models are coming soon.
  • For backup function, you need to connect an external USB DVD/CD burner.
  • The disk throughput test was conducted by a 3rd-party HDD manufacturer. The level of vibration produced by the system’s hard drive operation and fan energy is minimized to have an effect of less than 5% on the disk throughput when using 8 TB hard drives.
  • If you are in an area with unstable voltage, make sure to install an automatic voltage regulator (AVR) or a UPS power supply with AVR function, to maintain a constant voltage.
  • All damages to the power supply caused by unstable voltage are not included in the 2-year warranty service.
  • All specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Data Capture V3 Box
(for GV-VMS/NVR)		 GV‐Data Capture allows the integration of POS systems and the GeoVision surveillance system through cable or network connection.
GV-IO Box Series
(for GV-VMS/NVR)		 GV-IO Box series provides 4 / 8 / 16 inputs and relay outputs and support both DC and AC output voltages, with optional support for Ethernet module and 4E additionally supporting PoE connection.
GV-Joystick V2
(for GV-VMS/NVR)		 GV-Joystick V2 facilitates PTZ camera control. It can be either plugged into the GeoVision surveillance system for independent use or connected to GV-Keyboard to empower the operation.
GV-Keyboard V3
(for GV-VMS/NVR)		 GV-Keyboard V3 is used to program and operate the GeoVision surveillance system. You can also connect PTZ cameras directly to the keyboard for PTZ control.
Gigabit Network Card Gigabit Network Card is provided with the two options of 1-port Gb card and 2-port 10-Gb (20 Gb) card. The supported number of network cards varies based on models and the combination of RAID card. Contact our sales representatives for more information.
RAID Card The supported RAID types include 0, 1, 5, 6, 10, 50, 60.
Redundant Power Supply Redundant Power Supply comes with 2 hot-swap modules for 2U models and for 4U models. When 1 module is down, the other module can still supply full power to the system.
– 2U 8-Bay models: 460 W 1+1 mode; 100 ~ 240 V, 47 ~ 63 Hz
– 2U 12-Bay models: 550 W 1+1 mode; 100 ~ 240 V, 47 ~ 63 Hz
– 4U 20-Bay models: 800 W 1+1 mode; 90 ~ 264 V, 47 ~ 63 Hz

Packing List

  • GV-Hot Swap System V6 (Rev. B)
  • AC Power Cord
  • Sliding Rail Kit
  • Documents Download Guide

Note:

  • 2U (8-bay) models are coming soon.
  • For backup function, you need to connect an external USB DVD/CD burner.
  • The disk throughput test was conducted by a 3rd-party HDD manufacturer. The level of vibration produced by the system’s hard drive operation and fan energy is minimized to have an effect of less than 5% on the disk throughput when using 8 TB hard drives.
  • If you are in an area with unstable voltage, make sure to install an automatic voltage regulator (AVR) or a UPS power supply with AVR function, to maintain a constant voltage.
  • All damages to the power supply caused by unstable voltage are not included in the 2-year warranty service.
  • All specifications are subject to change without notice.
