GV-IO Box 4E

Categories: , ,

Description

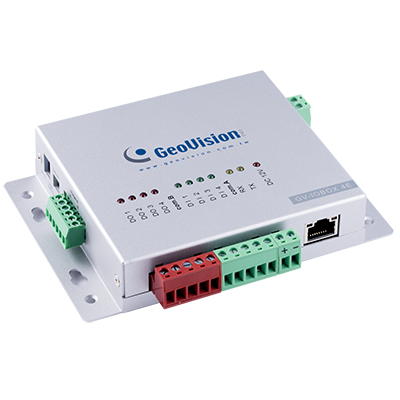

GV-I/O Box 4E is a compact yet powerful device with four inputs and four relay outputs. It has DC and AC output voltages, as well as PoE, TCP/IP and an RS-485 interface for PC connection. The device can also be controlled remotely via the GV-IoT mobile app.

Key Features

  • 4 inputs and 4 outputs
  • TCP/IP and RS-485 ports for PC connection
  • DC 12V, 3A / PoE+ (IEEE 802.3at)
  • Up to 9 GV-I/O Box 4 / 8 / 16 devices can be linked together
  • Up to 16 connections from GeoVision software are allowed to control one GV-I/O Box
  • GV‐IoT mobile app for remote management

Note:

  • Firefox browser is not supported currently
  • The Wiegand Interface does not have any function in Firmware V1.01 or earlier.
  • GV-I/O Box 4E can only be connected using CAT-5e cables, TIA / EIA-568-B, with the maximum DC resistance of 9.38 ohms / 100 m.
  • All specifications are subject to change without notice.

Overview




Note:

  • Firefox browser is not supported currently
  • The Wiegand Interface does not have any function in Firmware V1.01 or earlier.
  • GV-I/O Box 4E can only be connected using CAT-5e cables, TIA / EIA-568-B, with the maximum DC resistance of 9.38 ohms / 100 m.
  • All specifications are subject to change without notice.

Packing List

  • GV-I/O Box 4E
  • Warranty Card
  • Download Guide

Note:

  • Firefox browser is not supported currently
  • The Wiegand Interface does not have any function in Firmware V1.01 or earlier.
  • GV-I/O Box 4E can only be connected using CAT-5e cables, TIA / EIA-568-B, with the maximum DC resistance of 9.38 ohms / 100 m.
  • All specifications are subject to change without notice.
