GV-LPC2011

Description

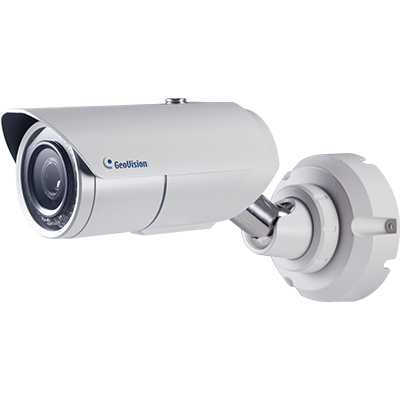

2MP 3x Zoom Super Low Lux Color Network Camera

GV-LPC2011 is a 2 MP color network camera designed for recognition of reflective license plates on vehicles traveling up at 60 km/h (37 mph) or less with extreme temperatures (-30°C ~ 50°C / -22°F ~ 122°F) resistance. It is weather proof (IP67). Equipped with a Super Low Lux CMOS image sensor, the camera is capable of displaying a color live view at near darkness. Its multiple LEDs and build-in intelligent IR provide clear license plate for two lanes under low-light conditions at a maximum IR distance of 10 m (35 ft). The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. The camera also allows automatic and precise control of exposure using its P‐iris, producing images with better clarity and contrast.

Models

Model	GV-LPC2011
Iris	P-Iris
Focal Length (mm)	3~9mm
Horizontal FOV	102°~40°
Maximum Aperture	F/1.7
Image Format	1/2.7″

Key Features

1/2.8” color progressive scan super low lux CMOS
Motorized varifocal lens for remote focus / zoom adjustment
Dual streams from MJPEG or H.264
Up to 30 fps at 1920 x 1080
Maximum Speed 60 km/h (37 mph)
Recognition for reflective License Plate only
Intelligent IR
Day and Night function (with removable IR-cut filter)
Megapixel lens
P-iris lens for auto iris control
Maximum IR distance 10 m (35 ft)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
DC 12V / PoE (IEEE 802.3af)
Wide Dynamic Range (WDR)
3D noise deduction
Defog
Motion detection
Privacy Mask
Text Overlay
Tampering Alarm
IP address filtering
Support for iPhone, iPad, Android & 3GPP
30 languages on Web interface
ONVIF (Profile S) compliant

Note:

The power adapter can be purchased upon request.
Specifications are subject to change without notice.

Overview

Note:

The power adapter can be purchased upon request.
Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount300-1	Convex Corner Adapter Kit		Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″) Weight: 4.27 kg (9.41 lb)
GV-Mount310-1	Concave Corner Adapter Kit		Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″) Weight: 2.96 kg (6.53 lb)
GV-Mount400-1	Pole Mount Bracket Kit (Ø 4 ~ 6″)		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6″
GV-Mount410-1	Pole Mount Bracket Kit (Ø 6 ~ 7.5″)		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5″
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
