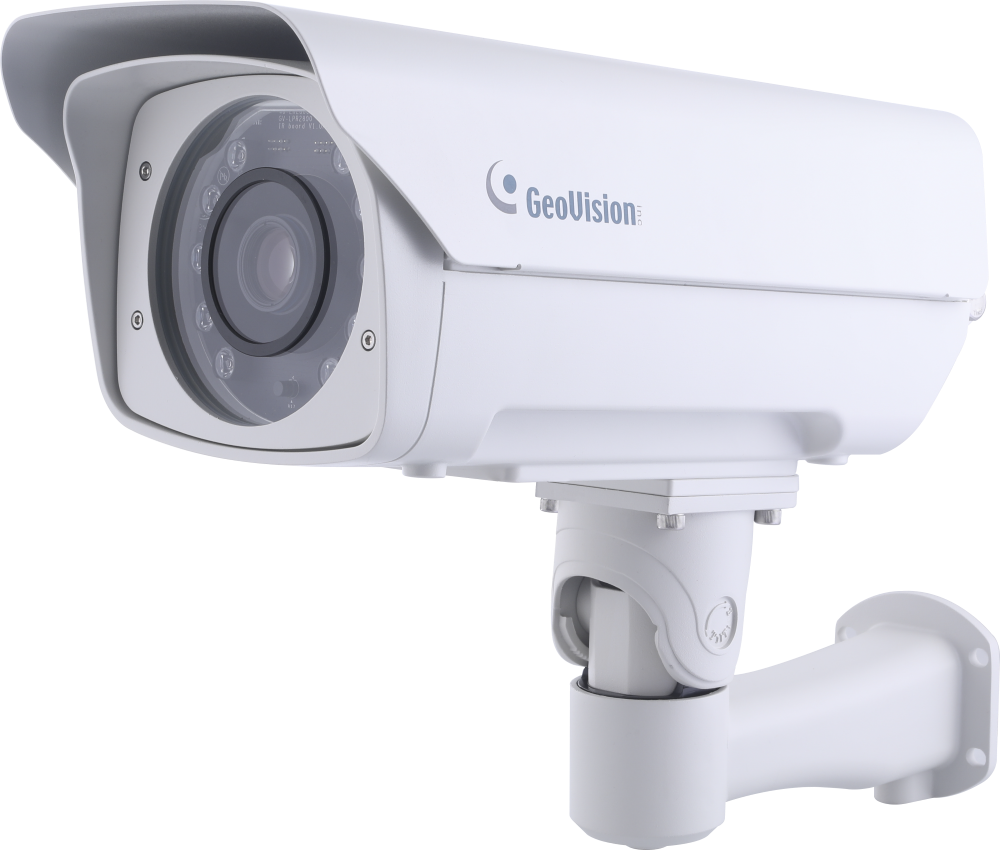

GV-LPR2800-DL

Description

Starlight 2 MP H.265 Super Low Lux WDR Pro LPR Box IP Camera

Deep-Learning LPR Camera

GV-LPR2800-DL is capable of recognizing license plate numbers with its built-in deep learning LPR processor. GV-LPR2800-DL can compare captured license plates either with its on-the-edge standalone database, or the database stored at the GV-ASManager access control system. When there is a match, GV-LPR2800-DL can grant access for the vehicle by opening a gate or barrier.

GV-LPR2800-DL is a 2 MP color network camera designed to recognize non-reflective and reflective license plates on vehicles traveling at up to 100 km/h (62 mph). Thanks to its multiple high-power LEDs and intelligent IR, the camera can automatically adjust its shutter speed to the scene and capture clear license plate images in low-light settings. It adheres to IP68 and IK10 standards and can withstand temperatures ranging from -40°C (-40°F) to 50°C (122°F).

Models

Model	GV-LPR2800-DL
Iris	DC-Iris
Focal Length (mm)	5~50mm
Horizontal FOV	50.9°~7.6°
Maximum Aperture	F/1.6
Image Format	1/2.7”

Key Features

Built-in deep learning LPR processor for license plate recognition
Double-lane recognition
Min. illumination at 0.04 lux
Triple streams from H.265, H.264 and MJPEG
Up to 60 fps at 1920 × 1080
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Wide Dynamic Range Pro (WDR Pro)
DC 12 V / PoE (IEEE 802.3bt)
Ingress protection (IP68)
Vandal resistance (IK10 for metal casing)
Standalone database
Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
Digital I/O (2 in / 2 out)
Built-in heater and fan
Recognize vehicles with speeds up to 100 km/h (62 mph)
Two-way audio
Recognized plate numbers export
Defog
Motion detection
Text Overlay
IP address filtering
Support for iPhone, iPad, Android & 3GPP
31 languages on Web interface
CE, FCC, LVD, RoHS compliant
TAICS IoT Cyber Security Level 2 certified (suitable for commercial use)

Note:

Specifications are subject to change without notice.

Overview

Note:

Specifications are subject to change without notice.

Accesories

Model No	Name	Details
GV-Mount300-1	Convex Corner Adapter Kit		Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″) Weight: 4.27 kg (9.41 lb)
GV-Mount310-1	Concave Corner Adapter Kit		Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″) Weight: 2.96 kg (6.53 lb)
GV-Mount400-1	Pole Mount Bracket Kit (Ø 4 ~ 6″)		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6″
GV-Mount410-1	Pole Mount Bracket Kit (Ø 6 ~ 7.5″)		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5″
GV-PA902BT	Gigabit PoE Adapter		Dimensions: 170 x 102 x 40 mm (6.69″ x 2.02″ x 1.57) Weight: 950g (2.09 lb)
GV-Relay V2			The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
Power Adapter		Contact our sales representatives for the countries and areas supported.
