GV-MD8710-FD

Categories: ,

Description

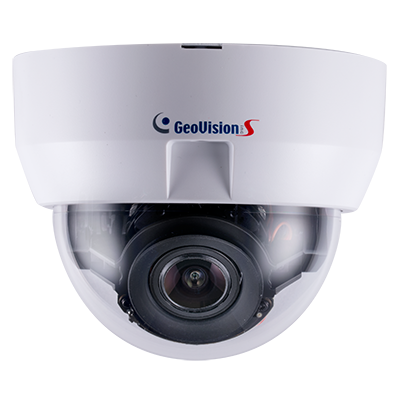

8MP H.265 2x Zoom Super Low Lux WDR Pro Face Detection Motorized IR IP Dome

GV-MD8710-FD is specifically designed for face detection. The camera is equipped with a WDR Pro, an automatic IR-cut filter and IR LEDs for day and night surveillance. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. For night operations, the camera allows up to 30 m (100 ft) IR effective distance. Adjustable in 3 axes (pan, tilt and rotate), it offers smart surveillance solutions with all the essential features and excellent image quality.

Models

Model GV-MD8710-FD
Iris P-Iris
Focal Length (mm) 4~8mm
Horizontal FOV 112°~61°
Maximum Aperture F/1.44
Image Format 1/2.5″

Key Features

  • 1/2″ progressive scan super low lux CMOS sensor
  • Min. illumination at 0.03 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 3840 x 2160
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Two-way audio
  • Built-in micro SD card slot (SDHC/SDXC, Class 10) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Wide Dynamic Range Pro (WDR Pro)
  • 3-axis mechanism (pan / tilt / rotate)
  • Face Detection
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
  • Day and Night function (with removable IR-cut filter)
  • Support for iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S, T) conformant

Note:

  • Face detection requires GV-VMS 18.1 or later.
  • Specifications are subject to change without notice.

Overview




Note:

  • Face detection requires GV-VMS 18.1 or later.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1″)
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″)
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Mount Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8″)
Weight: 900 g (1.98 lb)
GV-Mount203 Wall Mount and Junction Box Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9″)
Weight: 2.95 kg (6.5 lb)
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6″) Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6″
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5″) Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5″
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7″)
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount909 Wall Mount Bracket Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3″)
Weight: 0.61 kg (1.34 lb)
GV-Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3″)
Weight: 105 g (0.23 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3″)
Weight: 180 g (0.4 lb)
GV-Mount915 In-Ceiling Mounting Kit Dimensions: Ø 172.5 x 63.8 mm (Ø 7.04 x 2.5″)
Weight: 424 g (0.93 lb)
GV-Mount917 Dome Housing Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8″)
Weight: 948 g (2.09 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
