GV-MFD2700 Series

Categories: ,

Description

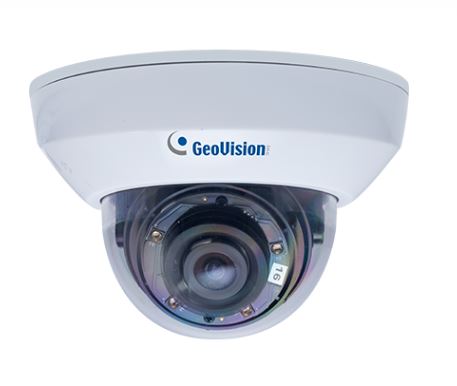

Starlight 2MP H.265 Super Low Lux WDR Pro IR Mini Fixed Dome

The GV-MFD2700 Series offers an indoor, fixed, mini-sized network camera with 3-axis mechanism for easy and flexible installation. GV-MFD2700 Series can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera can process scenes with contrasting intensity of lights and produce clear image using the built‐in WDR Pro. The camera is equipped with a super low lux CMOS image sensor which allows the camera to provide a color live view in near darkness.
​

Models

Model GV-MFD2700-0F GV-MFD2700-6F
Iris Fixed Fixed
Focal Length (mm) 2.8mm 2.3mm
Horizontal FOV 100° 140°
Maximum Aperture F/2.0 F/2.2
Image Format 1/2.7″ 1/2.7″

Key Features

  • 1/2.8″ progressive scan super low lux CMOS
  • Min. illumination at 0.004 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 1920 × 1080
  • Two-way audio capable
  • Intelligent IR
  • 3-axis mechanism (pan / tilt / rotate)
  • One sensor input and one alarm output
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Day and Night function (with removable IR-cut filter)
  • Megapixel lens
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Support for iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S, T) conformant

Note:

  • The ceiling and wall-surface mount installation illustrations are exemplified using GV-EFD4700.
  • Specifications are subject to change without notice.

Overview




Note:

  • The ceiling and wall-surface mount installation illustrations are exemplified using GV-EFD4700.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details

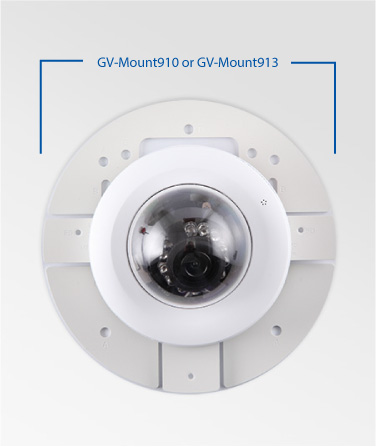

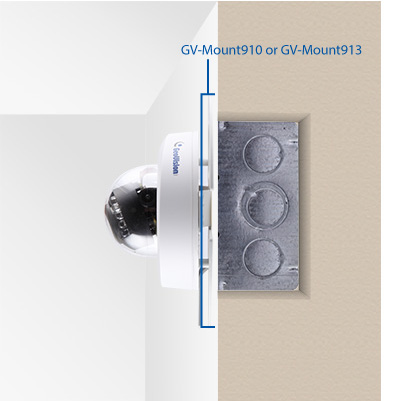

GV-Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3″)
Weight: 105 g (0.23 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3″)
Weight: 180 g (0.4 lb)

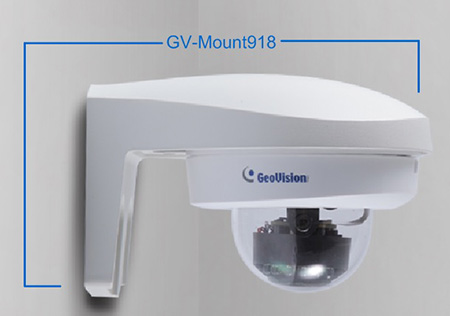

GV-Mount918 Wall Mount Bracket for MFD/MDR/EFD/EDR Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71 x4.60 x 3.78″)
Weight: 350 g (0.77 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • H.265 Mini Fixed IP Dome
  • Screw x 2
  • Screw Anchor x 2
  • Focus Adjustment Ring (only for GV-MFD2700-0F/2F)
  • Installation Sticker
  • Audio and I/O extended cable
  • Torx Wrench
  • Download Guide
  • Warranty Card

Note:

  • The ceiling and wall-surface mount installation illustrations are exemplified using GV-EFD4700.
  • Specifications are subject to change without notice.
