GV-PFER12800

Categories: ,

Description

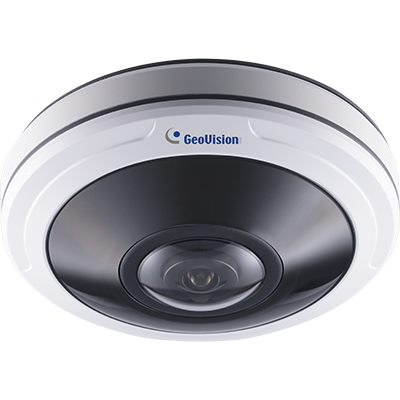

12MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera

AI Deep-Learning IP Camera

GV-PFER12800 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths. The camera adheres to IP67 and IK10 standards and can be powered through PoE. Additionally, the camera has the capability to conduct on-edge fisheye dewarping, eliminating the need to utillize resources from the backend devices.

Empowered by deep learning algorithms, AI technology distinguishes humans from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Models

Model GV-PFER12800
Iris Fixed
Focal Length (mm) 1.98mm
Horizontal FOV 180°
Maximum Aperture F/2.8
Image Format 1/1.7″

Key Features

  • AI deep learning: Smart Perimeter Protection (Humans)
  • 1/1.7″ progressive scan CMOS
  • Min. illumination at 0.005 lux
  • Dual streams from H.265 or H.264
  • Up to 30 fps at 3000 x 3000
  • 6 on-edge dewarping modes
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • IR distance up to 15 m (50 ft)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UJS‐I, Class 10) for local storage
  • Two-way audio capable
  • Built-in microphone
  • 12V DC / PoE (IEEE 802.3af)
  • 360° and 180° panorama views
  • Wide Dynamic Range Pro (WDR Pro)
  • AI analytics (Line Crossing, Region Entrance, Region Exiting, Advanced Motion Detection, Loitering, People Counting)
  • 3D noise reduction
  • Motion detection
  • Virtual PTZ function
  • Auto Pan function
  • Privacy mask
  • Text overlay
  • 20 languages on Web interface
  • ONVIF (Profile G, S, T, M) conformant
  • SIP/VoIP Support

Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Overview


Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount109 Pendant Mount Dimensions: Ø144 x 290 mm (Ø5.66″ x 11.41″)
Weight: 400 g (0.88 lb)
GV-Mount110 Extension Lever Dimensions: Ø57 x 255 mm (Ø2.24″ x 10.03″)
Weight: 325 g (0.71 lb)
*must be used with GV-Mount109
GV-Mount211-7 Wall Mount Bracket Dimensions: 238 x 159 x 136 mm (9.37″ x 6.26″ x 5.35″)
Weight: 560 g (1.23 lb)
GV-Mount508 Junction Box Dimensions: 145 x 167 x 33.5 mm (5.71″ x 6.57″ x 1.32″)
Weight: 200 g (0.44 lb)
GV-Mount430 Pole Mount Bracket Dimensions: 180 x 51.5 x 152.6 mm (7.09″ x 2.03″ x 6.01″)
Weight: 720 g (1.59 lb)
(must be used with GV-Mount211-7)
GV-PA191 PoE Adapter GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-PA301 Gigabit PoE Adapter GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-PFER12800 Fisheye Camera
  • Waterproof Rubber Set
  • Screw Kit
  • Torx Wrench
  • Hex Key H2.0
  • Download Guide

Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-PFER12800
