GV-POE0410-E-V2

Categories: , Tag:

Description

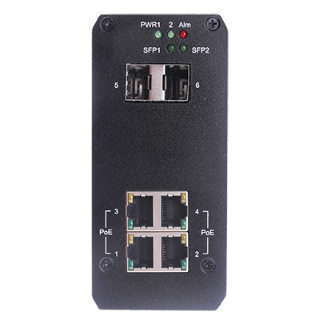

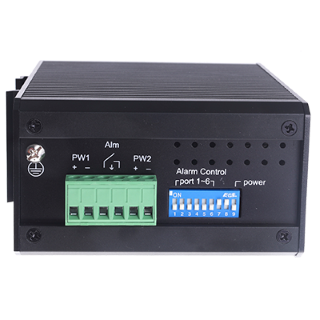

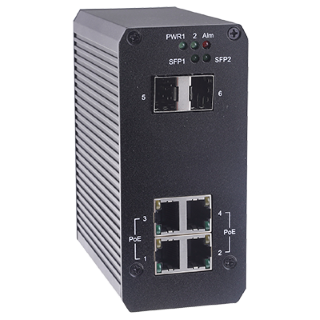

4-port Gigabit 802.3at and 2 Gigabit SFP Industrial PoE Switch

GV-POE0410-E-V2 is a 4-port PoE Switch with 4 PoE+ 10/100/1000 BaseT(X) port and 2 Gigabit SFP. The switch supports IEEE 802.3at Power over Ethernet standard with up to 30 W per port and a maximum power consumption of 127 W. It eliminates the need for power cables to connect your powered devices (PD), such as IP cameras. GV-POE0410-E-V2 is featured with a redundant power supply for automatic power backup and supports alerting for power and connection failure. The switch is ideal for small network environments in strengthening network connection stability and efficiency.

Key Features

  • 4-port PoE+ 10/100/1000 BaseT(X), 2 Gigabit SFP
  • IEEE 802.3at Compliant (4 Ports at Full 30 W)
  • Max. 127 W power consumption
  • Extreme temperature tolerance (‐40°C ~ 75°C / ‐40°F ~ 167°F)
  • Auto-MDI/MDI-X
  • Auto-Negotiation
  • Alarm control
  • DIN-Rail Installation
  • Redundant DC power
  • 6 kV Surge Protection
  • Up to 4 GV-IP Cameras support

Note:

  • Specifications are subject to change without prior notice.

Overview


Note:

  • Specifications are subject to change without prior notice.

Accessories

Model No Name Details
GV-LC The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet, and provides the media transmission distance up to 220 / 550 m (772 / 1804 ft).
GV-LC10 The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet, and provides the media transmission distance up to 10 km (32808 ft).

Packing List

  • GV-POE0410-E-V2
  • GV-POE0410-E-V2 Quick Installation Guide

Note:

  • Specifications are subject to change without prior notice.
