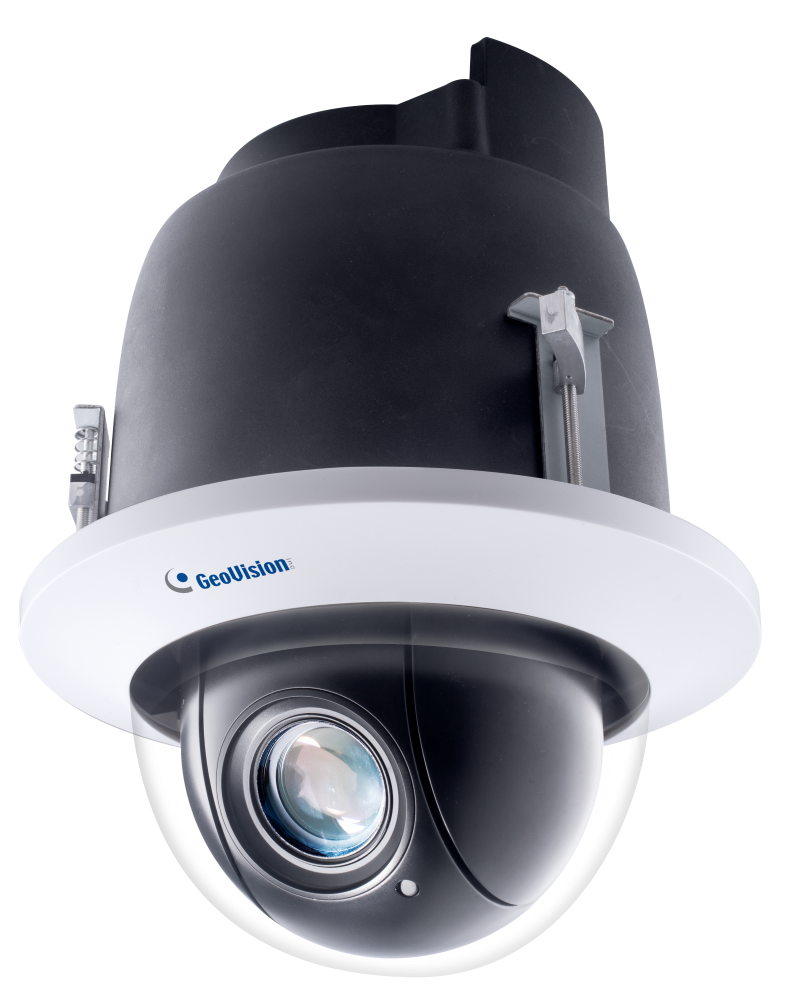

GV-QSD5730-Indoor

Categories: ,

Description

33x 5MP H.265 Low Lux WDR Pro IP Speed Dome

GV-QSD5730-Indoor is an indoor network PTZ camera that offers 33x optical zoom and 10x digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver four video streams in resolutions up to 2592 x 1944 at 30 fps. GV-QSD5730-Indoor supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Wide surveillance coverage is made possible with 360° endless panning and -10°~100° tilting capacity. PTZ functions such as Preset, Auto Pan, and Patrol can be programmed and activated by schedule. GV-QSD5730-Indoor supports pan/tilt speeds ranging from a fast patrol of 400° and 300° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.

GV-QSD5730-Indoor also features Servo Feedback and Electronic Image Stabilizer (EIS) technology. The Servo Feedback technology ensures the camera view returns to the previous position when encountering external force (e.g. human interference) or environmental vibration. EIS technology can effectively produce stable images by actively sensing directional movement of the images and compensating accordingly; this is particularly useful for cameras installed at places where environmental movement (e.g. strong wind, the passing-by heavy vehicles) is constant, and when high optical zoom is executed.

Models

Model GV-QSD5730-Indoor
Iris Auto / Manual
Focal Length (mm) 4.6~152mm
Horizontal FOV 55.4°~1.9°
Maximum Aperture F/1.6
Image Format 1/2.8″

Key Features

  • 1/2.8″ progressive scan low lux CMOS sensor
  • Quad streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2592 × 1944
  • Min. illumination at 0.002 lux
  • 33x optical zoom and 10x digital zoom
  • Day and Night function (with removable IR-cut filter)
  • Four sensor inputs and two alarm outputs
  • Wide Dynamic Range Pro (WDR Pro)
  • Temperature tolerance (-25°C ~ 50°C / -13°F ~ 122°F)
  • Support for TV-out
  • Two-way audio capable
  • Built-in SD card slot (SDHC/SDXC, Class 10) for local storage
  • PoE+ (802.3at) / AC 24V / DC 30V
  • Pan 360° endlessly
  • Tilt from -10° to 100°
  • Pan and tilt speed of up to 400°/sec and 300°/sec respectively
  • PTZ movement (Preset, Cruise, Auto Pan, Sequence)
  • PTZ auto tracking
  • Electrical Image Stabilizer (EIS)
  • Servo Feedback, returning the camera view to the previous position upon encountering external forces
  • 3D noise reduction
  • Privacy mask
  • 12 languages on Web interface
  • ONVIF (Profile G, S, T) conformant
  • TAICS IoT Cyber Security certified

Note:

  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.

Overview





Note:

  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
GV-PoE Adapter GV-PoE Adapter is designed to provide power to the IP device through a single Ethernet cable. Adopting the PoE adapter enables you to mount an IP device anywhere in a building where power outlets are not available.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-QSD5730-Indoor
  • Drill Template Paster
  • 3-Pin Power Terminal Block (AC 24V)
  • 14-Pin Alarm/Audio I/O Terminal Block
  • Download Guide
  • Warranty Card

Note:

  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-QSD5730-Indoor
