GV-QSD5731-IR

Categories: ,

Description

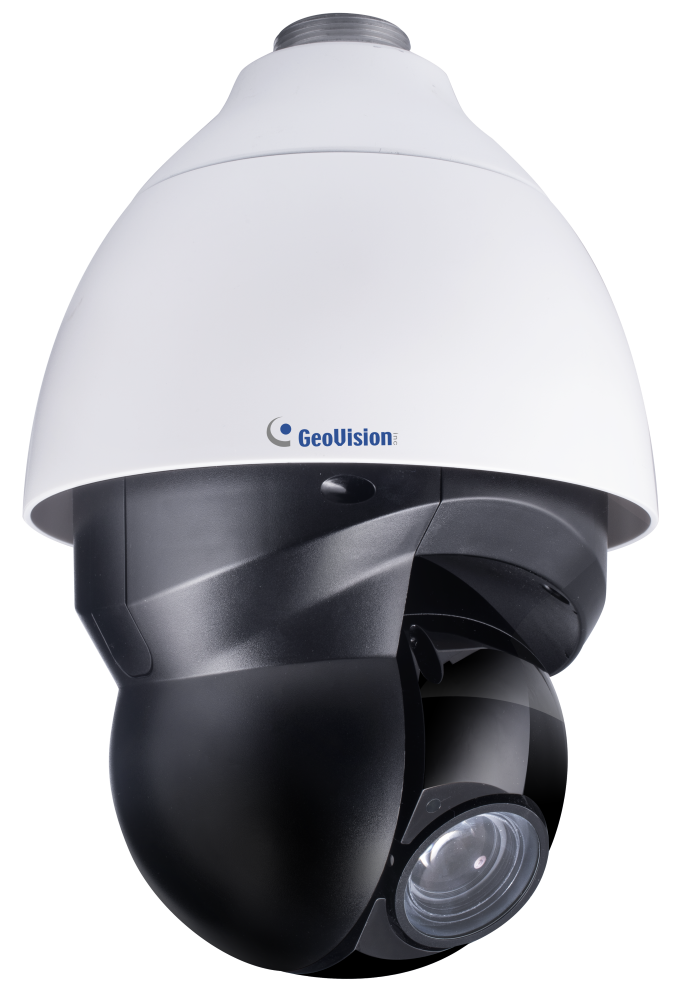

33x 5MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome

GV-IP Speed Dome (GV-QSD5731-IR) is an outdoor network PTZ camera that offers 33x optical zoom and 10x digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver four video streams in resolutions up to 2592 x 1944 at 30 fps, which allows up to 150 m (500 ft) effective IR distance. GV-QSD5731-IR supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Wide surveillance coverage is made possible with 360° endless panning and -20°~100° tilting capacity. PTZ functions such as Preset, Auto Pan, and Patrol can be programmed and activated by schedule. The GV-QSD5731-IR supports pan/tilt speeds ranging from a fast patrol of 280° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.

GV-QSD5731-IR also features Servo Feedback and Electronic Image Stabilizer (EIS) technology. The Servo Feedback technology ensures the camera view returns to the previous position when encountering external force (e.g. human interference) or environmental vibration. EIS technology can effectively produce stable images by actively sensing directional movement of the images and compensating accordingly; this is particularly useful for cameras installed at places where environmental movement (e.g. strong wind, the passing-by heavy vehicles) is constant, and when high optical zoom is executed.

Models

Model GV-QSD5731-IR
Iris Auto / Manual
Focal Length (mm) 4.6~152mm
Horizontal FOV 55°~2°
Maximum Aperture F/1.6
Image Format 1/2.8″

Key Features

  • 1/2.8″ progressive scan super low lux CMOS sensor
  • Min. illumination at 0.002 lux
  • Quad streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2592 × 1944
  • 33x optical zoom and 10x digital zoom
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • IR distance up to 150 m (500 ft)
  • Wide Dynamic Range Pro (WDR Pro)
  • Temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)
  • Support for TV-out
  • Built-in SD card slot (SDHC/SDXC, Class 10) for local storage
  • Ingress protection (IP66)
  • Vandal resistance (IK10 for housing)
  • High PoE (PoE++, 60W) / AC 24V / DC 30V
  • Pan 360° endlessly
  • Tilt from -20° to 100°
  • Pan and tilt speed of up to 280°/sec
  • PTZ movement (Preset, Cruise, Auto Pan, Sequence)
  • PTZ auto tracking
  • Electrical Image Stabilizer (EIS)
  • Servo Feedback, returning the camera view to the previous position upon encountering external forces
  • 3D noise reduction
  • Privacy mask
  • 12 languages on Web interface
  • ONVIF (Profile G, S, T) conformant
  • TAICS IoT Cyber Security certified

Note:

  • Optional GV-PA902BT Gigabit PoE Adapter is required for applying PoE function.
  • Optional GV-Mount (GV-Mount104-1 / 105-1 / 210-1 / 208-4) is required for installing GV-QSD5731-IR.
  • Specifications are subject to change without notice.

Overview


Note:

  • Optional GV-PA902BT Gigabit PoE Adapter is required for applying PoE function.
  • Optional GV-Mount (GV-Mount104-1 / 105-1 / 210-1 / 208-4) is required for installing GV-QSD5731-IR.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount104-1 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″)
Weight: 1.8 kg (3.97 lb)
*non-waterproof
GV-Mount105-1 Straight Tube and Junction Box Kit Dimensions: 256 x 256 x 297 mm (10.1 x 10.1 x 11.7″)
Weight: 6.2 kg (13.67 lb)
GV-Mount 208-4 Swan Neck Mount Dimensions: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08″)
Weight: 10.6 kg (23.37 lb)
GV-Mount210-1 Wall Pendant Mount Dimensions: 200 x 140 x 249 mm (7.9 x 5.5 x 9.80″)
Weight: 1.1 kg (2.4. lb)
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6″) Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6″
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5″) Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5″
GV-Mount501 Convex Corner Box Mount Dimensions: 136 x 256 x 256 mm (5.4 x 10.1 x10.1″)
Weight: 4.8 kg (10.6 lb)
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7″)
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-PA902BT Gigabit PoE Adapter tw Dimensions: 170 x 102 x 40 mm (6.69″ x 2.02″ x 1.57)
Weight: 950g (2.09 lb)

Packing List

  • GV- QSD5731-IR
  • M4 Screw with Rubber
  • 3-Pin Power Terminal Block (AC 24V)
  • Pendant cap
  • 14-Pin Alarm/Audio I/O Terminal Block
  • Download Guide
  • Warranty Card

Note:

  • Optional GV-PA902BT Gigabit PoE Adapter is required for applying PoE function.
  • Optional GV-Mount (GV-Mount104-1 / 105-1 / 210-1 / 208-4) is required for installing GV-QSD5731-IR.
  • Specifications are subject to change without notice.
