GV-SD4834-IR

GV-SD4834-IR

Categories: ,

Description

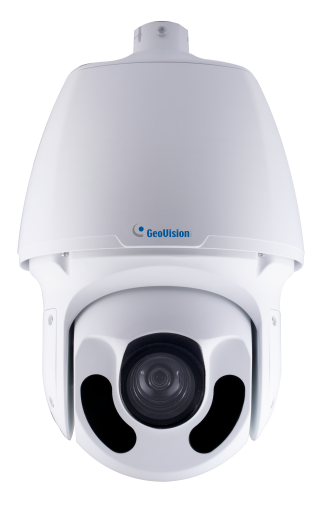

4MP 33x Zoom H.265 Super Low Lux WDR Pro Outdoor IR IP Speed Dome

AI Deep-Learning IP Camera

GV-SD4834-IR is an outdoor network PTZ camera that offers 33x optical zoom and unlimited digital zoom, capable of showing smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2688 x 1520 at 30 fps. In low-light environments, night vision is enhanced with its high-power LEDs, which allow up to 150 m (500 ft) effective IR distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It also adheres to IP66 and IK10 standards.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. GV-SD4834-IR supports AI perimeter protection, people flow counting, auto tracking, motion detection, audio detection and more.

Models

Model GV-SD4834-IR
Iris Auto / Manual
Focal Length (mm) 4.5 ~ 148.5mm
Horizontal FOV 53.0°~2.3°
Maximum Aperture F/1.5
Image Format 1/2.8″

Key Features

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.8″ progressive scan CMOS sensor
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2688 x 1520
  • Motorized varifocal lens for remote focus / zoom adjustment
  • 33x optical zoom and unlimited digital zoom
  • Intelligent IR
  • IR distance up to 150 m (500 ft)
  • Day and Night function (with removable IR-cut filter)
  • Two sensor inputs and one alarm output
  • Wide Dynamic Range Pro (WDR Pro)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP66)
  • Wide temperature tolerance (-40°C ~ 65°C / -40°F ~ 149°F)
  • TV-out support
  • Two-way audio capable
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • DC 24V / AC 24V / PoE+ (IEEE 802.3at)
  • Pan 360° endlessly
  • Tilt from ‐15° to 90°
  • Pan and tilt speed of up to 300°/sec and 240°/sec, respectively
  • PTZ movement (Preset, Auto Pan and Patrol)
  • PTZ patrol by schedule
  • AI analytics (Cross Line, Intrusion, Enter Area, Leave Area, Face Detection, People Flow Counting, Crowd Density Monitoring)
  • Auto focus
  • 3D noise reduction
  • Motion detection
  • Privacy mask

Note:

  • It is required to apply patch files to some of the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Overview


Note:

  • It is required to apply patch files to some of the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount104 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″)
Weight: 1.8 kg (3.97 lb)
GV-Mount105 Straight Tube and Junction Box Kit Dimensions: 256 x 256 x 297 mm (10.1 x 10.1 x 11.7″)
Weight: 6.2 kg (13.67 lb)
GV-Mount 208-3 Swan Neck Mount Dimensions: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08″)
Weight: 10.6 kg (23.37 lb)
GV-Mount210 Wall Pendant Mount Dimensions: 200 x 140 x 249 mm (7.9 x 5.5 x 9.80″)
Weight: 1.1 kg (2.4. lb)
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2″)
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6″) Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6″
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5″) Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5″
GV-Mount501 Convex Corner Box Mount Dimensions: 136 x 256 x 256 mm (5.4 x 10.1 x10.1″)
Weight: 4.8 kg (10.6 lb)
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7″)
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-SD4834-IR
  • M4 Hex Key
  • Waterproof Rubber Set
  • Waterproof Guidelines
  • Download Guide

Note:

  • It is required to apply patch files to some of the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
