GV-TBL2703 Series

Description

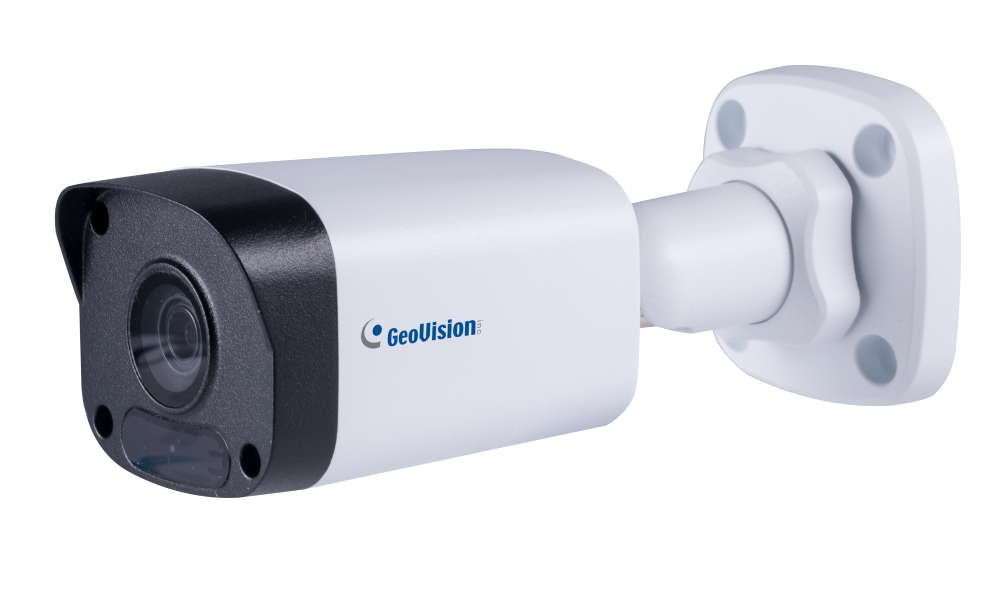

2MP H.265 Low Lux WDR IR Bullet IP Camera

The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 standards and can be powered through PoE.

Models

Model	GV-TBL2703-0F	GV-TBL2703-1F
Iris	Fixed	Fixed
Focal Length (mm)	4mm	6mm
Horizontal FOV	86°	55°
Maximum Aperture	F/2.0	F/2.0
Image Format	1/2.7″	1/2.7″

Key Features

1/2.7″ progressive scan low lux CMOS sensor
Min. illumination at 0.02 lux
Triple streams from H.265, H.264 or MJPEG
Up to 30 fps at 1920 × 1080
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Ingress protection (IP67)
DC 12V / PoE (IEEE 802.3af)
Wide Dynamic Range (WDR)
Defog
3D noise reduction
Motion detection
Text overlay
Privacy mask
ONVIF (Profile S) conformant

Note:

It is required to apply patch files to all the supported software.
Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
Specifications are subject to change without notice.

Overview

Note:

It is required to apply patch files to all the supported software.
Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount300-2	Convex Corner Mount		Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″) Weight: 1.65 kg (3.64 lb)
GV-Mount310-2	Concave Corner Mount		Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″) Weight: 1.65 kg (3.64 lb)
GV-Mount502	Wall Mount Bracket		Dimensions: 93 x 93 x 39 mm (3.66″ x 3.66″ x 1.53″) Weight: 0.235kg (0.52 lb)
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.

Packing List

GV-TBL2703 IR Bullet IP Camera
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Download Guide
Warranty Card

Note:

It is required to apply patch files to all the supported software.
Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
Specifications are subject to change without notice.
