GV-TBL4807

Description

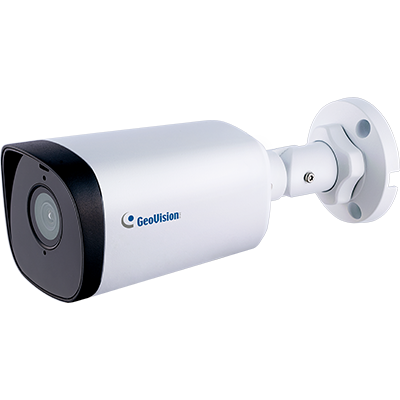

4MP H.265 Super Low Lux WDR Pro IR Fixed Bullet IP Camera

AI Deep-Learning IP Camera

GV-TBL4807 is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, event playback and more.

Models

Model	GV-TBL4807
Iris	Fixed
Focal Length (mm)	6mm
Horizontal FOV	52.1°
Maximum Aperture	F/1.6
Image Format	1/2.7″

Key Features

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/2.7″ progressive scan CMOS sensor
Min. illumination at 0.002 lux
Triple streams from H.265, H.264 or MJPEG
Wide Dynamic Range Pro (WDR Pro)
Up to 30 fps at 2688 x 1520
Intelligent IR
IR distance up to 80 m (260 ft)
Built-in microphone
Day and Night function (with removable IR-cut filter)
Ingress protection (IP67)
Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
DC 12V / PoE (IEEE 802.3af)
AI analytics (Intrusion, Line Crossing, Region Entrance, Region Exiting, Face Detection, People Counting, Crowd Density Monitoring)
Defog
3D noise reduction
Motion detection / ultra motion detection
Tampering alarm
Text overlay
Privacy mask
12 languages supported
ONVIF (Profile G, S, T) conformant

Note: Specifications are subject to change without notice.

Overview

Note: Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount300-2	Convex Corner Mount		Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″) Weight: 1.65 kg (3.64 lb) *must be used with GV-Mount504
GV-Mount310-2	Concave Corner Mount		Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″) Weight: 1.65 kg (3.64 lb) *must be used with GV-Mount504
GV-Mount440	Pole Mount		Dimensions: 127 x 136 x 62.5 mm (5″ x 5.35″ x 2.46″) Weight: 0.34 kg (0.75 lb) Steel Strap Diameter: Ø 67 ~ 127 mm (Ø 2.6″ ~ 5″) *must be used with GV-Mount504
GV-Mount504	Wall Mount Bracket		Dimensions: Ø 104.4 x 54.5 mm (Ø 4.11″ x 2.15″) Weight: 0.36 kg (0.79 lb)
GV-Mount924	Power Box Mount Bracket		Dimensions: Φ128 x 18.5 mm (5″ x 0.7″) Weight: 0.15 kg (0.33 lb) *for standard US single and double gang boxes only
GV-PA191	PoE Adapter		GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-PA301	Gigabit PoE Adapter		GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
