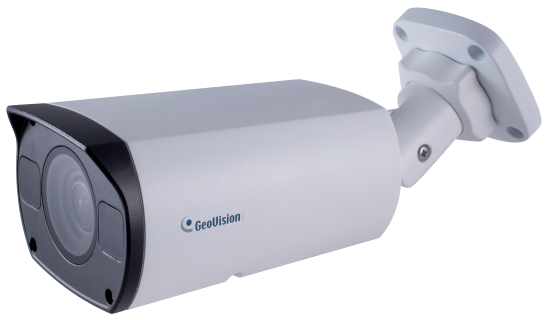

GV-TBL4810

Description

AI 4MP H.265 5x Zoom Super Low Lux WDR Pro IR Bullet IP Camera

AI Deep-Learning IP Camera

GV-TBL4810 is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Models

Model	GV-TBL4810
Iris	Fixed
Focal Length (mm)	2.7~13.5mm
Horizontal FOV	98°~31°
Maximum Aperture	F/1.2
Image Format	1/3″

Key Features

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/3″ progressive scan super low lux CMOS
Min. illumination at 0.002 lux
Triple streams from H.265, H.264 or MJPEG
Up to 30 fps at 2688 x 1520
Motorized varifocal lens for remote focus / zoom adjustment
Intelligent IR
IR distance up to 50 m (165 ft)
Day and Night function (with removable IR-cut filter)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
Two-way audio
DC 12V / PoE (IEEE 802.3af)
Wide Dynamic Range Pro (WDR Pro)
ONVIF (Profile G, S, T) conformant

Note:

Power adapters can be purchased upon request.
Specifications are subject to change without notice.

Overview

Note:

Power adapters can be purchased upon request.
Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount300-2	Convex Corner Mount		Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″) Weight: 1.65 kg (3.64 lb)
GV-Mount310-2	Concave Corner Mount		Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″) Weight: 1.65 kg (3.64 lb)
GV-Mount420	Pole Mount Bracket		Dimensions:Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″) Weight: 0.45 kg (0.99 lb) Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″) *must be used with GV-Mount503
GV-Mount503	Wall Mount Bracket		Dimensions: 125 x 125 x 55 mm (4.9″ x 4.9″ x 2.2″) Weight: 0.74 kg (1.63 lb)
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
