GV-TBL8804

Description

8MP H.265 Super Low Lux WDR Pro Full Color Warm LED IR Bullet IP Camera

AI Deep-Learning IP Camera

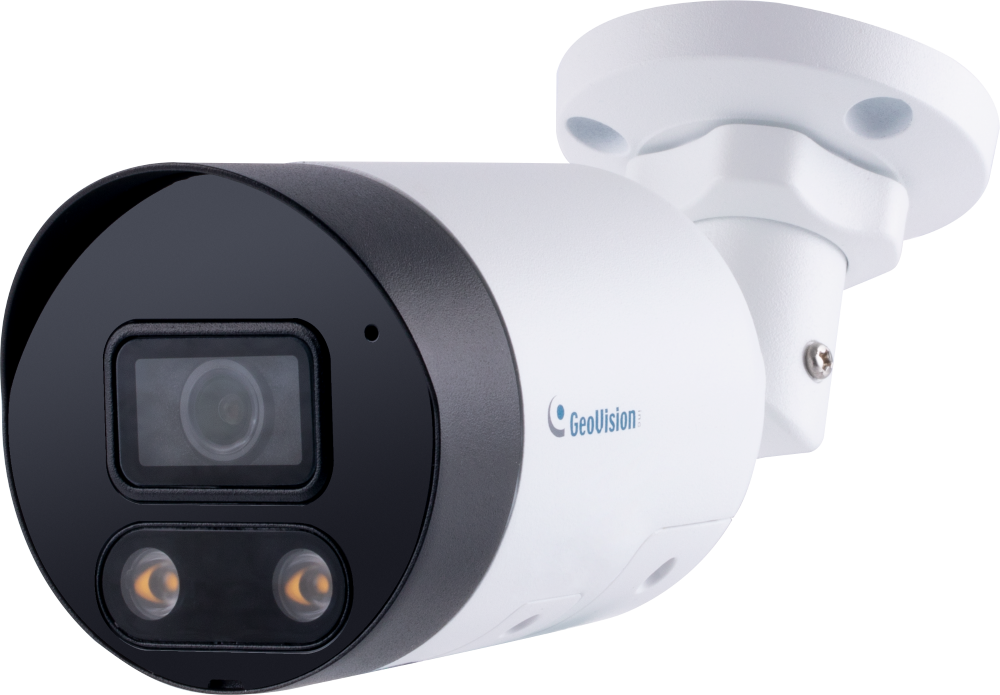

The Bullet IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter, one IR LED and two warm LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-TBL8804 adheres to IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Models

Model	GV-TBL8804
Iris	Fixed lens
Focal Length (mm)	4mm
Horizontal FOV	86°
Maximum Aperture	F/2.0
Image Format	1/2.7″

Key Features

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/2.7″ progressive scan super low lux CMOS
Min. illumination at 0.01 lux
Triple streams from H.265, H.264 or MJPEG
Wide Dynamic Range Pro (WDR Pro)
Up to 20 fps at 3840 x 2160
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Alarm sound and warm LED light triggered on AI detection events
Ingress protection (IP67)
Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
Two-way audio
DC 12V / PoE (IEEE 802.3af)
ONVIF (Profile G, S, T) conformant

Note: Specifications are subject to change without notice.

Overview

Note: Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount504	Wall Mount Bracket		Dimensions: Ø 104.4 x 54.5 mm (Ø 4.11″ x 2.15″) Weight: 0.36 kg (0.79 lb)
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.

Packing List

GV-TBL8804 IR Bullet IP Camera
Waterproof Rubber Set
Screw Kit
Drill Template Paster
Download Guide

Note: Specifications are subject to change without notice.
