GV-TBLP5800

Categories: ,

Description

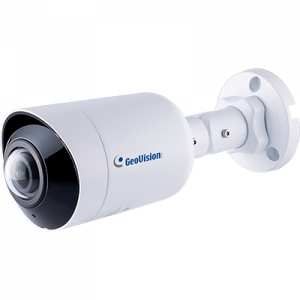

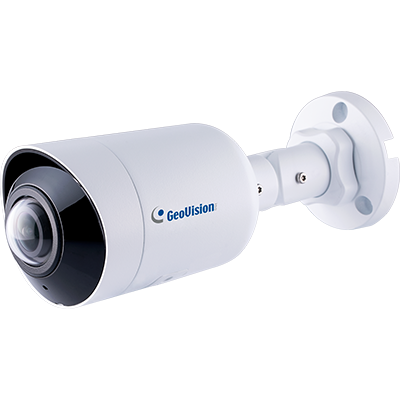

5MP H.265 Super Low Lux WDR Pro IR Fixed Bullet IP Camera

AI Deep-Learning IP Camera

The panoramic bullet IP camera is an outdoor, network camera that captures 180° horizontal coverage, providing a wide coverage of view for open and large areas with just one camera. It is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. GV-TBLP5800 adheres to IP67 standards, and can be powered through PoE. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, event playback and more.

Models

Model GV-TBLP5800
Iris Fixed
Focal Length (mm) 1.68mm
Horizontal FOV 180°
Maximum Aperture F/2.0
Image Format 1/2.7″

Key Features

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.7″ progressive scan CMOS sensor
  • Min. illumination at 0.01 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 30 fps at 2880 x 1620
  • Intelligent IR
  • IR distance up to 20 m (65 ft)
  • Day and Night function (with removable IR-cut filter)
  • 180° panoramic view
  • Ingress protection (IP67)
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UJS‐I, Class 10) for local storage
  • Built-in microphone
  • Wide Dynamic Range Pro (WDR Pro)
  • AI analytics (Intrusion, Line Crossing, Region Entrance, Region Exiting)
  • 3D noise reduction
  • Motion detection / ultra motion detection
  • Tampering alarm
  • Defog
  • Text overlay
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant

Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Overview



Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
*must be used with GV-Mount504
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
*must be used with GV-Mount504
GV-Mount440 Pole Mount Dimensions: 127 x 136 x 62.5 mm (5″ x 5.35″ x 2.46″)
Weight: 0.34 kg (0.75 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm (Ø 2.6″ ~ 5″)
*must be used with GV-Mount504
GV-Mount504 Wall Mount Bracket Dimensions: Ø 104.4 x 54.5 mm (Ø 4.11″ x 2.15″)
Weight: 0.36 kg (0.79 lb)
GV-Mount924 Power Box Mount Bracket Dimensions: Φ128 x 18.5 mm (5″ x 0.7″)
Weight: 0.15 kg (0.33 lb)
*for standard US single and double gang boxes only
GV-PA191 PoE Adapter GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-PA301 Gigabit PoE Adapter GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-TBLP5800 IR Bullet Camera
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Torx Wrench
  • Download Guide

Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-TBLP5800
