GV-TDR4700 Series

Categories: ,

Description

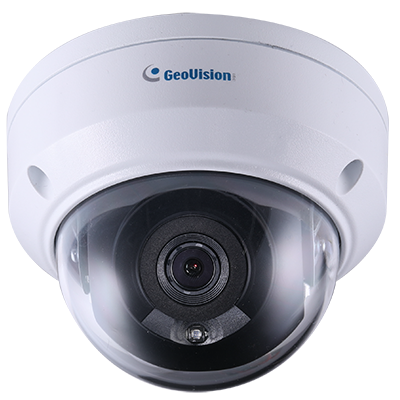

4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.

Models

Model GV-TDR4700-0F GV-TDR4700-1F
Iris Fixed Fixed
Focal Length (mm) 2.8mm 3.6mm
Horizontal FOV 100° 78°
Maximum Aperture F/2.0 F/2.0
Image Format 1/3″ 1/3″

Key Features

  • 1/3″ progressive scan super low lux CMOS
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Ingress protection (IP67)
  • Vandal resistance (IK10)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • Two-way audio capable
  • One sensor input and one alarm output
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • ONVIF (Profile G, S, T) conformant

Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Overview




Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount213
GV-Mount211P Wall Mount and Junction Box Dimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″)
Weight: 1 kg (2.2 lb)
GV-Mount213 Wall / Ceiling Box Mount Dimensions: Φ109 x 39 mm (Φ4.3″ x 1.5″)
Weight: 0.2 kg (0.44 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″)
*must be used with GV-Mount211P
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-TD4700 IR Mini Fixed Rugged IP Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide
  • Warranty Card

Note:

  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
