GV-TFD4700

Categories: ,

Description

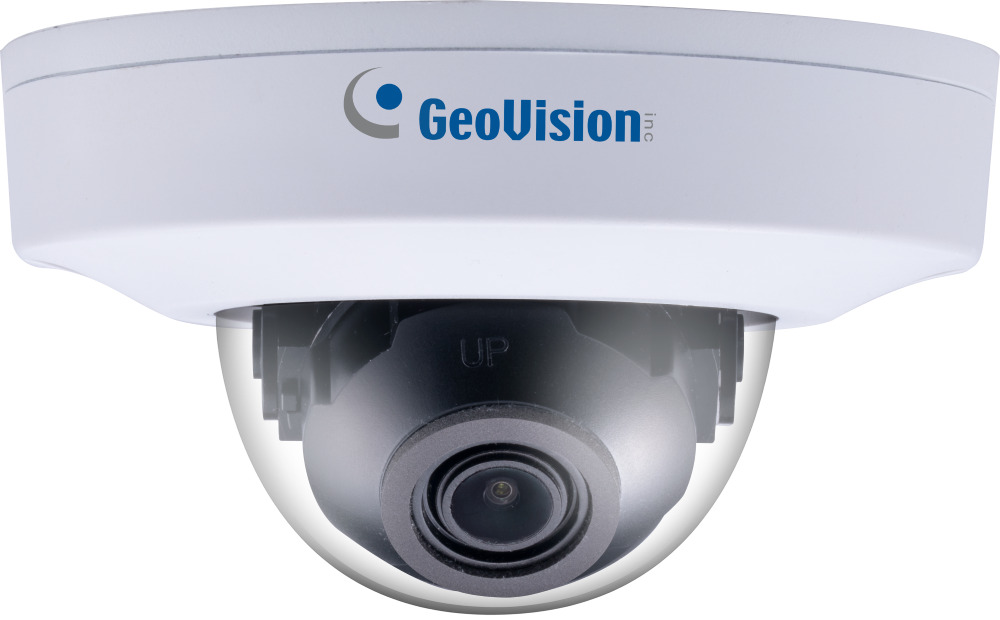

4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome

GV-TFD4700 is an indoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.

Models

Model GV-TFD4700
Iris Fixed
Focal Length (mm) 2.8mm
Horizontal FOV 95°
Maximum Aperture F/2.0
Image Format 1/3″

Key Features

  • 1/3″ progressive scan super low lux CMOS
  • Min. illumination at 0.01 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2688 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Two-way audio capable
  • One sensor input and one alarm output
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Pigtail-free
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • 12 languages supported

Note:

  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.

Overview




Note:

  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.



Accessories

Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount213
GV-Mount211P Wall Mount and Junction Box Dimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″)
Weight: 1 kg (2.2 lb)
GV-Mount213 Wall / Ceiling Box Mount Dimensions: Φ109 x 39 mm (Φ4.3″ x 1.5″)
Weight: 0.2 kg (0.44 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″)
*must be used with GV-Mount211P
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-TFD4700
  • Screw Kit
  • Drill Template Paster
  • Torx Wrench
  • 2-Pin Terminal Block
  • Download Guide
  • Warranty Card

Note:

  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/download/product/GV-TFD4700
