Description

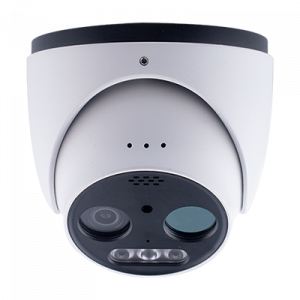

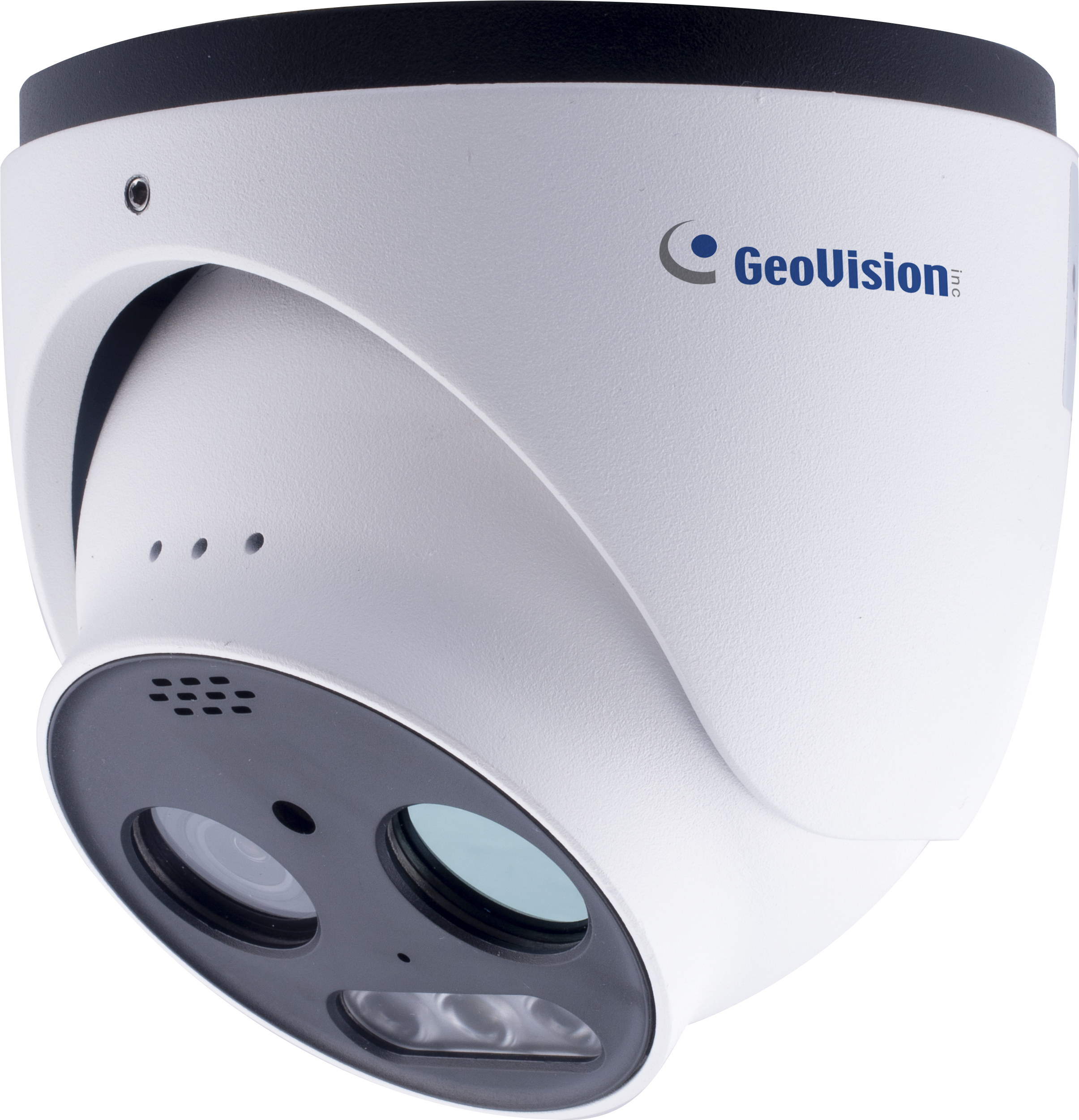

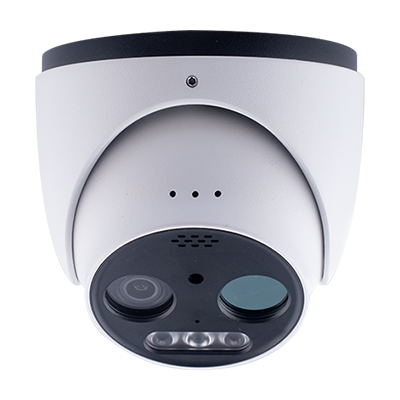

5MP H.265 Super Low Lux WDR Pro IR Thermal & Optical IR Fixed Eyeball Dome IP Camera

AI Deep-Learning IP Camera

GV-TMEB5800 is an AI-enabled thermal camera that combines dual thermal and optical images for perimeter protection and fire prevention. The thermal camera can detect fires and measure predefined temperatures, triggering lighting and alarms. Even in low-light and harsh environments, the thermal camera with AI analytics is able to detect intrusion events with minimal false alarms. The camera adheres to the IP66 standard, and can be powered through PoE.

GV-TMEB5800 is also a camera for active deterrence. It can deter intruders and prevent potential crime by utilizing the built-in white LED and alarm sound.

Models

Model GV-TMEB5800 (Optical)
Iris Fixed
Focal Length (mm) 4mm
Horizontal FOV 81°
Maximum Aperture F/1.6
Image Format 1/2.7″

Key Features

  • Thermal: Vanadium oxide uncooled focal plane detector, 12 um pixel size
  • Thermal sensitivity: ≤50 mK (@25°C, F#=1.0)
  • Thermal spectral range: 8 ~ 14 um
  • Thermal images of up to 17 fps at 256 x 192 (output resolution 1280 x 720)
  • Thermal AI analytics (Fire Detection, Temperature Exception Alarm, Line Crossing, Region Intrusion)
  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/2.7″ progressive scan CMOS sensor
  • Min. illumination at 0.02 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2592 x 1994
  • 3-axis mechanism (pan / tilt / rotate)
  • Ingress protection (IP66)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Built-in microphone and speaker
  • Two-way audio
  • Defog
  • 3D noise reduction
  • AI analytics (Line Crossing, Region Entrance, Region Exiting, Target Counting, Region Intrusion, Face Detection)
  • Active Deterrence: alarm sound and LED light triggered on AI detection events
  • Motion detection
  • Privacy mask
  • 12 languages supported
  • ONVIF (Profile G, S, T) conformant

Note:

  • The integration with GV-SNVR series is not supported.
  • Specifications are subject to change without notice.

Overview



Note:

  • The integration with GV-SNVR series is not supported.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount211-4 Wall Mount Bracket Dimensions: 129.8 x 154.9 x 74.4 mm (5.11″ x 6.1″ x 2.93″)
Weight: 0.527 kg (1.16 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • Eyeball Dome
  • Waterproof Rubber
  • Screw Kit
  • Hex Key
  • Drill Template Paster
  • Download Guide

Note:

  • The integration with GV-SNVR series is not supported.
  • Specifications are subject to change without notice.
