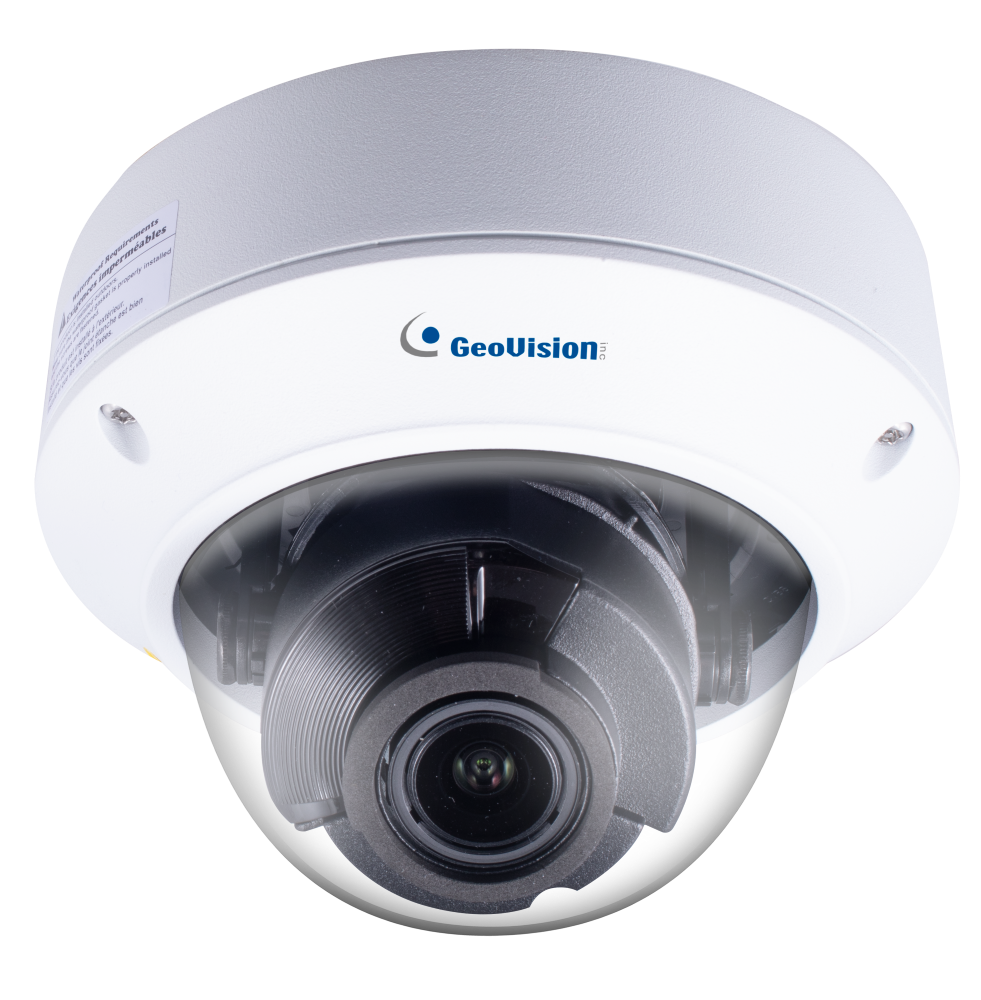

GV-TVD4700

Description

4MP H.265 Super Low Lux WDR IR Vandal Proof IP Dome

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV-TVD4700 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

Models

Model	GV-TVD4700
Iris	Fixed
Focal Length (mm)	2.8~12mm
Horizontal FOV	97°~29°
Maximum Aperture	F/1.6
Image Format	1/3″

Key Features

1/3″ progressive scan super low lux CMOS
Min. illumination at 0.01 lux
Triple streams from H.265, H.264 or MJPEG
Up to 20 fps at 2592 x 1520
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
3-axis mechanism (pan / tilt / rotate)
DC 12V / PoE (IEEE 802.3af)
Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
Wide Dynamic Range (WDR)
Defog
3D noise reduction
Motion detection
Text overlay
Privacy mask
Tampering alarm
ONVIF (Profile G, S, T) conformant

Note:

Power adapters can be purchased upon request.
Specifications are subject to change without notice.

Overview

Note:

Power adapters can be purchased upon request.
Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount107	Pendant Bracket		Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″) Weight: 0.74 kg (1.63 lb) *must be used with GV-Mount212-2
GV-Mount211-2	Wall Mount and Junction Box		Dimensions: Φ253 x125 x 125 mm (Φ10 x 4.9 x 4.9″) Weight: 0.92 kg (2.0 lb)
GV-Mount212-2	Wall Box Mount		Dimensions: Φ145x 40 mm (Φ5.7″ x 1.6″) Weight: 0.24 kg (0.5 lb)
GV-Mount300-2	Convex Corner Mount		Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″) Weight: 1.65 kg (3.64 lb)
GV-Mount310-2	Concave Corner Mount		Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″) Weight: 1.65 kg (3.64 lb)
GV-Mount420	Pole Mount Bracket		Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″) Weight: 0.45 kg (0.99 lb) Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″) *must be used with GV-Mount211-2
GV-Mount606	In-Ceiling Mount		Dimensions: Φ235 x 63 mm (Φ9.3″ x 2.5″) In-ceiling hole: Φ195 mm (Φ7.67″) Weight: 0.49 kg (1.1 lb)
GV-Mount704	Extension Tube		Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″) Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb) *must be used with GV-Mount107
GV-Mount921	Power Box Mount Bracket		Dimensions: Ø 145 x 13 mm (Ø 5.7″x 0.5″) Weight: 0.13 kg (0.29 lb) * for standard US single and double gang boxes only
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
