GV-TVD4711

Categories: ,

Description

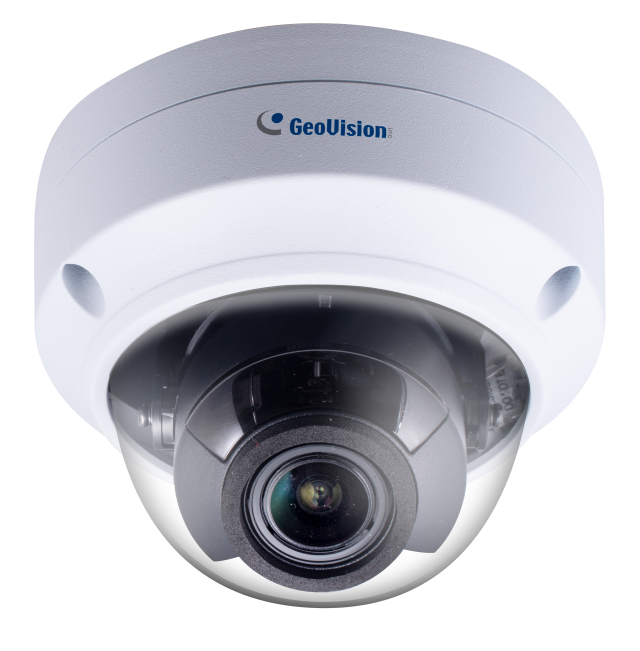

4MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP66 ingress protection. GV-TVD4711 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

Models

Model GV-TVD4711
Iris Fixed
Focal Length (mm) 2.8~12mm
Horizontal FOV 98°~31°
Maximum Aperture F/1.6
Image Format 1/3″

Key Features

  • 1/3″ progressive scan super low lux CMOS
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2688 x 1520
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP66)
  • 3-axis mechanism (pan / tilt / rotate)
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • Two-way audio capable
  • Pigtail-free
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • Tampering alarm
  • 12 languages supported
  • ONVIF (Profile G, S) conformant

Note:

  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.

Overview



Note:

  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″)
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount212-2
GV-Mount211P Wall Mount and Junction Box Dimensions: Φ233 x 125 x 125 mm / (Φ9.2 x 4.9 x 4.9″)
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount Dimensions: Φ126 x 36 mm (Φ5.0″ x 1.4″)
Weight: 0.22 kg (0.48 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″)
*must be used with GV-Mount211P
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • IR Vandal Proof Dome
  • Spare Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • 2-Pin Power Terminal Block
  • Cable Protection Connector
  • Torx Wrench
  • Download Guide
  • Warranty Card

Note:

  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.
