GV-TVD8810

Description

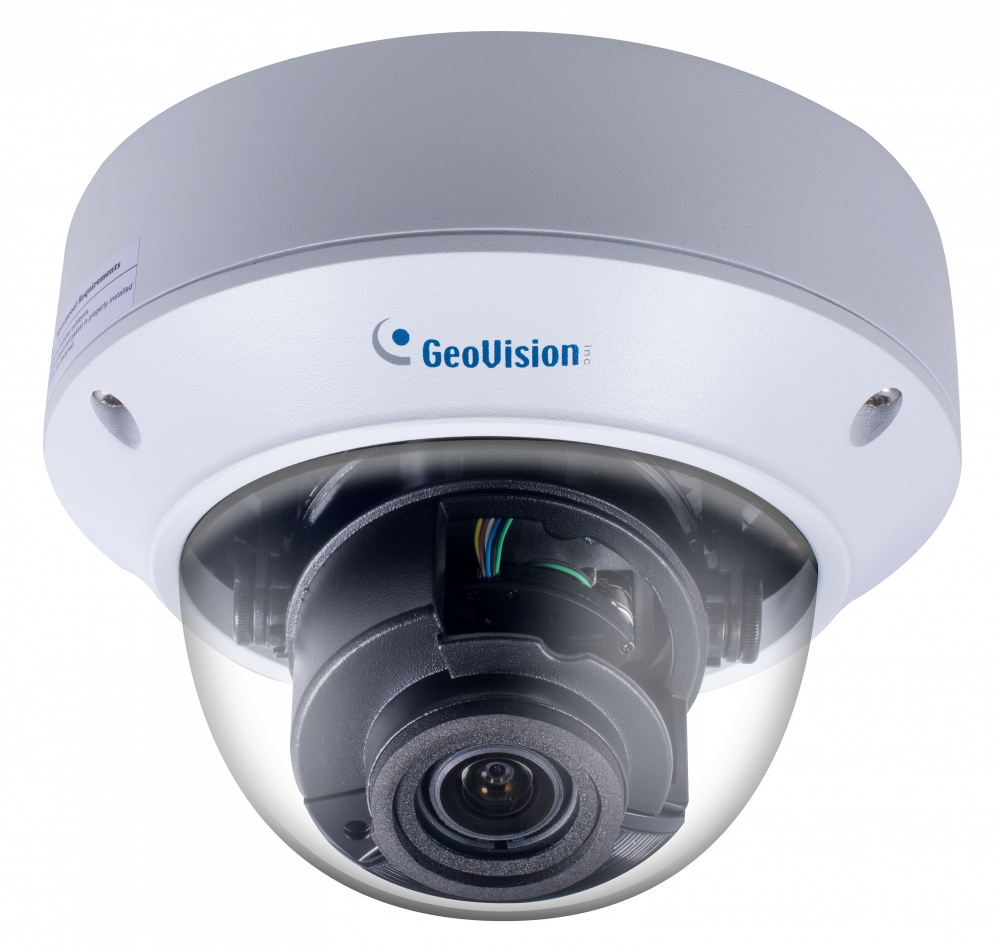

AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome

AI Deep-Learning IP Camera

The Dome IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-TVD8810 adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Models

Model	GV-TVD8810
Iris	Motorized varifocal lens
Focal Length (mm)	2.8~12mm
Horizontal FOV	107.4°~29.2°
Maximum Aperture	F/1.6
Image Format	1/2.8″

Key Features

AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/2.8″ progressive scan super low lux CMOS sensor
Min. illumination at 0.003 lux
Triple streams from H.265, H.264 or MJPEG
Up to 20 fps at 3840 x 2160
Intelligent IR
IR distance up to 40 m (130 ft)
Day and Night function (with removable IR-cut filter)
Motorized varifocal lens for remote focus / zoom adjustment
Wide Dynamic Range Pro (WDR Pro)
Ingress protection (IP67)
Vandal resistance (IK10 for metal casing)
Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
Built-in microphone
Two-way audio capable
DC 12V / PoE (IEEE 802.3af)
ONVIF (Profile G, S, T) conformant

Note:

The integration of AI events of the camera to GV-VMS is coming soon.
Specifications are subject to change without notice.

Overview

Note:

The integration of AI events of the camera to GV-VMS is coming soon.
Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount107	Pendant Bracket		Dimensions: Φ120 x 334 mm (Φ4.72″ x 13.15″) Weight: 0.74 kg (1.63 lb) *must be used with GV-Mount212-2
GV-Mount211-2	Wall Mount and Junction Box		Dimensions: Φ253 x125 x 125 mm (Φ10 x 4.9 x 4.9″) Weight: 0.92 kg (2.0 lb)
GV-Mount212-2	Wall Box Mount		Dimensions: Φ145x 40 mm (Φ5.7″ x 1.6″) Weight: 0.24 kg (0.5 lb)
GV-Mount300-2	Convex Corner Mount		Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″) Weight: 1.65 kg (3.64 lb)
GV-Mount310-2	Concave Corner Mount		Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″) Weight: 1.65 kg (3.64 lb)
GV-Mount420	Pole Mount Bracket		Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7″ x 4.7″ x 2.1″) Weight: 0.45 kg (0.99 lb) Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6″~ 5″) *must be used with GV-Mount211-2
GV-Mount606	In-Ceiling Mount		Dimensions: Φ235 x 63 mm (Φ9.3″ x 2.5″) In-ceiling hole: Φ195 mm (Φ7.67″) Weight: 0.49 kg (1.1 lb)
GV-Mount704	Extension Tube		Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7″) Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb) *must be used with GV-Mount107
GV-Mount921	Power Box Mount Bracket		Dimensions: Ø 145 x 13 mm (Ø 5.7″x 0.5″) Weight: 0.13 kg (0.29 lb) * for standard US single and double gang boxes only
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported
