GV-VD2712

Description

Starlight 2MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Vandal Proof IP Dome

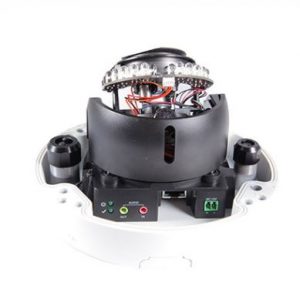

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. For night operations, the camera allows up to 30 m (100 ft) IR effective distance. GV-VD2712 is capable of not only providing a color live view in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

Models

Model	GV-VD2712
Iris	P-Iris
Focal Length (mm)	2.8 ~12 mm
Horizontal FOV	110°~38°
Maximum Aperture	F/1.7
Image Format	1/2.7”

Key Features

1/2.8″ progressive scan super low lux CMOS
Min. illumination at 0.004 lux
Triple streams from H.265, H.264 and MJPEG
Up to 30 fps at 1920 × 1080
Vandal resistance (IK10 for metal casing)
Ingress protection (IP67)
Motorized varifocal lens for remote focus / zoom adjustment
P-iris lens for auto iris control
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
3-axis mechanism (pan / tilt / rotate)
DC 12V / PoE (IEEE 802.3af)
Two-way audio
Wide Dynamic Range Pro (WDR Pro)
3D noise reduction
Smart streaming
Defog
Motion detection
Tampering alarm
Text overlay
Privacy mask
IP address filtering
Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
Support for iPhone, iPad, Android & 3GPP
31 languages on Web interface
ONVIF (Profile S, T) conformant

Note:

Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.0.0.
Specifications are subject to change without notice.

Overview

Note:

Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.0.0.
Specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount100	Straight Tube and Junction Box Kit		Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1″) Weight: 3.17 kg (6.99 lb)
GV-Mount101	Straight Tube Kit		Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″) Weight: 1.8 kg (3.97 lb)
GV-Mount200	Wall Pendant Mount		Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8″) Weight: 900 g (1.98 lb)
GV-Mount203	Wall Mount and Junction Box		Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9″) Weight: 2.95 kg (6.5 lb)
GV-Mount206	Wall Box Mount		Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96″ Weight: 0.93 kg (2.06 lb)
GV-Mount300-1	Convex Corner Adapter Kit		Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2″) Weight: 4.27 kg (9.41 lb)
GV-Mount310-1	Concave Corner Adapter Kit		Dimensions: 111.2 x 369.9 x 210 mm (4.37 x 14.5 x 8.2″) Weight: 2.96 kg (6.53 lb)
GV-Mount400-1	Pole Mount Bracket Kit (Ø 4 ~ 6″)		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 4 ~ 6″
GV-Mount410-1	Pole Mount Bracket Kit (Ø 6 ~ 7.5″)		Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41″) Weight: 1.70 kg (3.75 lb) Steel Strap Diameter: Ø 6 ~ 7.5″
GV-Mount702	Extension Tube		Four options are available. Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm (Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7″) Weight: 180 g or 390 g or 550 g or 800 g (0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903-1	Dome Housing		Dimensions: Ø 185.5 x 165.3 mm (Ø 7.3″ x 6.5″) Weight: 900 g (1.98 lb)
GV-Mount916	In-Ceiling Mounting		Dimensions: Ø 205 x 63.8 mm (Ø 8 x 2.5″) Weight: 645 g
GV-PA191 PoE Adapter	Power over Ethernet (PoE) Adapter		The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
Metal PG21 Conduit Connector			The metal PG21 conduit connector allows you to run the wires through a 3/4″ conduit pipe.
GV-Relay V2			The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
