GV-VR360

Categories: ,

Description

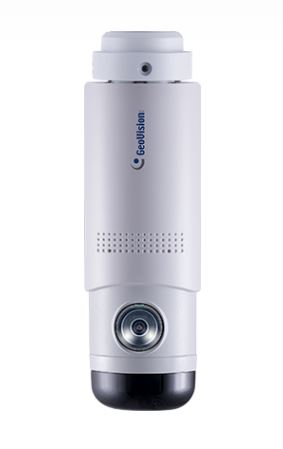

8MP H.265 Low Lux WDR IR Virtual Reality IP Camera

GV-VR360 is a Virtual Reality IP camera made true with two 4 MP fisheye panoramic cameras. The camera provides a live view of the surveillance area with an all-inclusive 720° angle range of view and extended depth of field, enabling a total coverage of wide open areas. When streamed online or viewed through the GV-Eye or YouTube mobile app, users can watch the 720°, VR video from the camera for an immersive experience. Equipped with IR-cut filter and IR LEDs, GV-VR360 is capable of day and night surveillance under contrasting illumination conditions. Utilizing H.265 video codec, the camera allows better compression ratio while maintaining high image quality at reduced network bandwidths. The camera adheres to IK10 and IP67 standards.

Models

Model GV-VR360
Iris Fixed
Focal Length (mm) 1.05mm
Horizontal FOV 360°
Maximum Aperture F/2.25
Image Format 1/2.9″

Key Features

  • Dual 4MP fisheye provides 720° panoramic view with no blind spots
  • 1/2.9″ progressive scan low lux CMOS
  • Dual streams from H.265 or H.264
  • Up to 30 fps at 3840 x 2160
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • 4 IR LEDs
  • IR distance up to 10 m (32 ft)
  • One-way audio
  • Built-in / external microphone
  • One sensor input and one alarm output
  • DC 12V / PoE (PoE+, IEEE 802.3at)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • VR Mode for YouTube & GV-Eye
  • Smart device app support
  • Live streaming via YouTube
  • Defog
  • 3 languages on Web interface
  • ONVIF (Profile S) conformant

Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • H.265 video codec is not supported for YouTube streaming.
  • Audio for YouTube streaming requires AAC audio codec.
  • Stream 2 is disabled by default. Change the FPS of stream 1 to 25 or lower to enable stream 2.
  • Specifications are subject to change without notice.
  • Power adapters can be purchased upon request.

Overview




Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • H.265 video codec is not supported for YouTube streaming.
  • Audio for YouTube streaming requires AAC audio codec.
  • Stream 2 is disabled by default. Change the FPS of stream 1 to 25 or lower to enable stream 2.
  • Specifications are subject to change without notice.
  • Power adapters can be purchased upon request.

Accessories

Model No Name Details
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • IR Virtual Reality IP Camera
  • Mount Kit
  • Silica Gel Bag
  • Hex Key
  • Torx Wrench
  • Screw x 3
  • Screw Anchor x 3
  • Download Guide
  • Warranty Card

Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • H.265 video codec is not supported for YouTube streaming.
  • Audio for YouTube streaming requires AAC audio codec.
  • Stream 2 is disabled by default. Change the FPS of stream 1 to 25 or lower to enable stream 2.
  • Specifications are subject to change without notice.
  • Power adapters can be purchased upon request.

Video

GV-VR360 Live Demo

GV-VR360 2018 Taiwan Lantern Festival in Chiayi (Replay with Audio)

GV-VR360 2018 Taiwan Lantern Festival’s Main Lantern (Replay with Audio)

GV-VR360 Factory

GV-VR360 Animal Shelter

GV-VR360 Farming

GV-VR360 Retail


Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • H.265 video codec is not supported for YouTube streaming.
  • Audio for YouTube streaming requires AAC audio codec.
  • Stream 2 is disabled by default. Change the FPS of stream 1 to 25 or lower to enable stream 2.
  • Specifications are subject to change without notice.
  • Power adapters can be purchased upon request.
